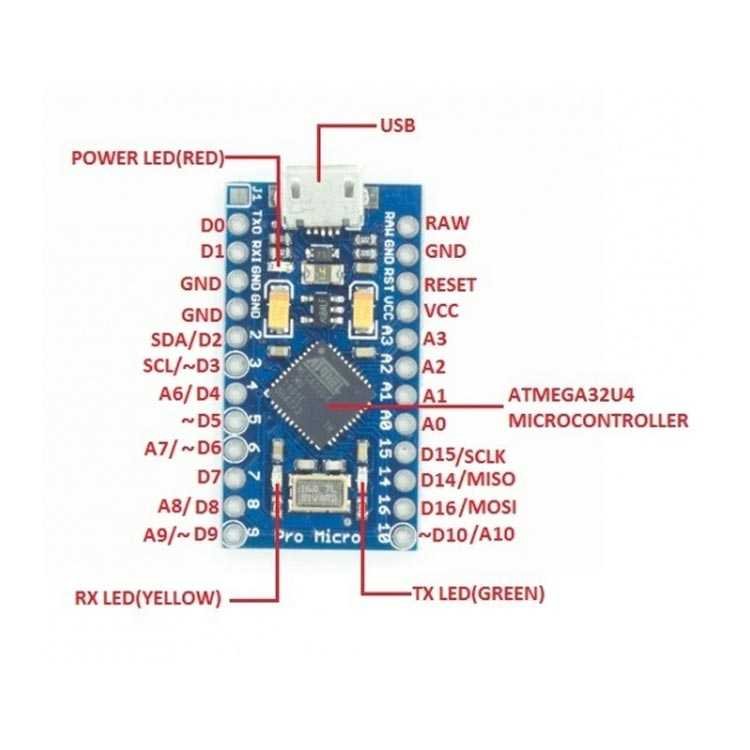

• Clone Arduino Pro Micro 5V 16MHz
• Arduino Pro Micro has an integrated USB-Serial converter due to its smaller size than Arduino Nano and the use of ATmega32U4 on it, which allows it to be used in more compact projects.
• Thanks to the Atmega32U4 on the Arduino Pro Micro, it can be programmed with a direct USB connection from the computer, but the drivers must be installed in the Windows operating system. There is no need for this process for Windows 10, but a driver is required for operating systems other than Windows 10, you can find the driver links and the necessary details in the documents section.
• Arduino Pro Micro Clone 5V 16MHz Features
• Microcontroller: ATmega32U4
• Working Voltage: 5 V
• Total I / O Pins: 18 (Most pins can be used for different operations)
• Flash Memory: 32 KB (ATmega32U4)
• SRAM: 2 KB (ATmega32U4)
• EEPROM: 1 KB (ATmega32U4)
• Clock Speed: 16 MHz
• Length: 33 mm
• Width: 18 mm
