Apraksts

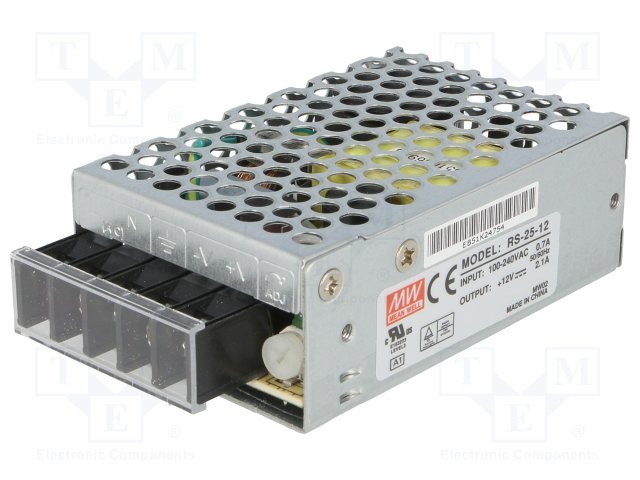

• Manufacturer MEAN WELL
• Type of power supply unit switched-mode
• Kind of power supply modular
• Power 25.2W
• Output voltage 12V DC

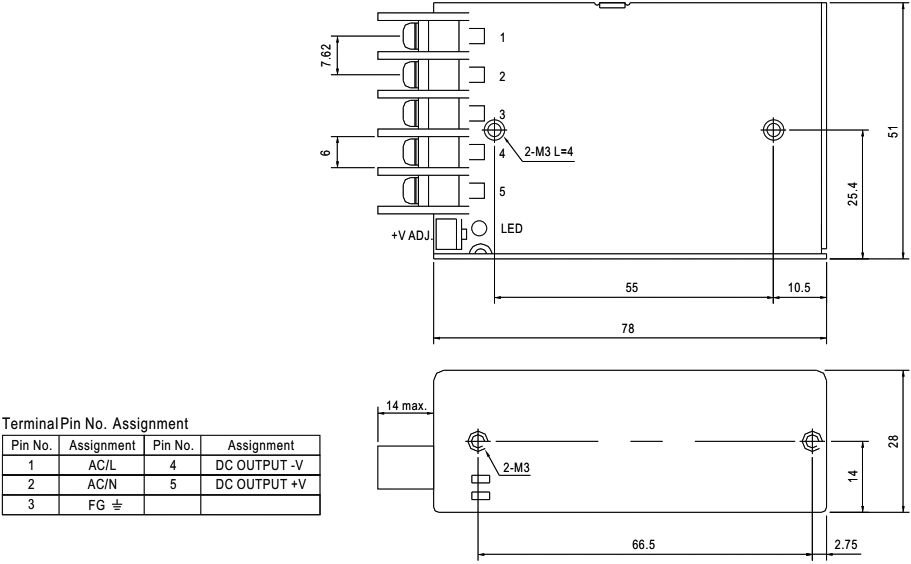

• Body dimensions 78 x 51 x 28mm
• Output current 2.1A
• Power supply/converter features rated parameters obtained at full load
• Weight 200g
• Number of outputs 1
• Mounting for building in
• Operating temperature -25...70°C
• Electrical connection terminal block
• Supply voltage 88...264V AC, 125...373V DC
• Protection overload, voltage growth, short-circuit
• Efficiency 81.5%
• Series RS-25
• Kind of case 931A

Parametri

Skrūvju spailes
Modulis
12VDC
2.1A
25.2W

Papildu dokumentācija
