Apraksts

• Manufacturer MEAN WELL
• Type of power supply switched-mode
• Kind of power supply for building in, modular
• Power 36W
• Output voltage 36V DC
• Output current 1A
• Number of outputs 1

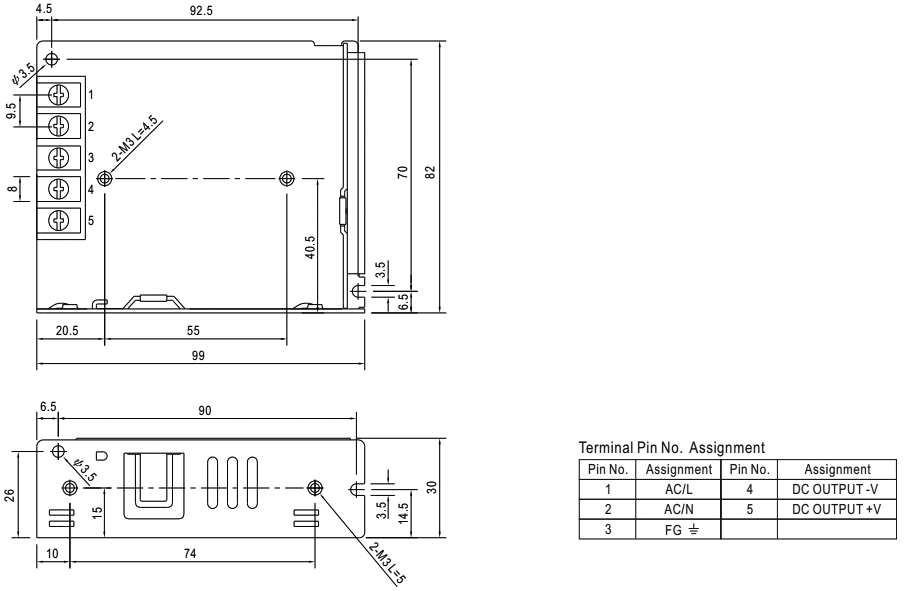

• Body dimensions 99x82x30mm
• Operating temperature -30...70°C
• Electrical connection terminal block
• Protection anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP
• Efficiency 88%
• Manufacturer series LRS-35
• Kind of case 239A
• Power consumption without load <0.2W
• Power supply/converter features rated parameters obtained at full load
• Output voltage range 32.4...39.6V DC
• Trade name LRS
• Supply voltage
• 85...264V AC
• 120...373V DC

Parametri

Skrūvju spailes
Modulis
36VDC
1A
36W

Papildu dokumentācija
