Apraksts

• Manufacturer AIMTEC
• Type of converter DC/DC
• Power 1W
• Input voltage 10.8...13.2V
• Output voltage 5V DC
• Output current 200mA
• Case SMD
• Body dimensions 12.7x11.2x7.25mm
• Weight 1.5g
• Efficiency 80%
• Operating temperature -40...105°C
• Protection short circuit protection SCP
• Insulation voltage 1500V DC
• Mounting SMD
• Series AM1LS-NZ

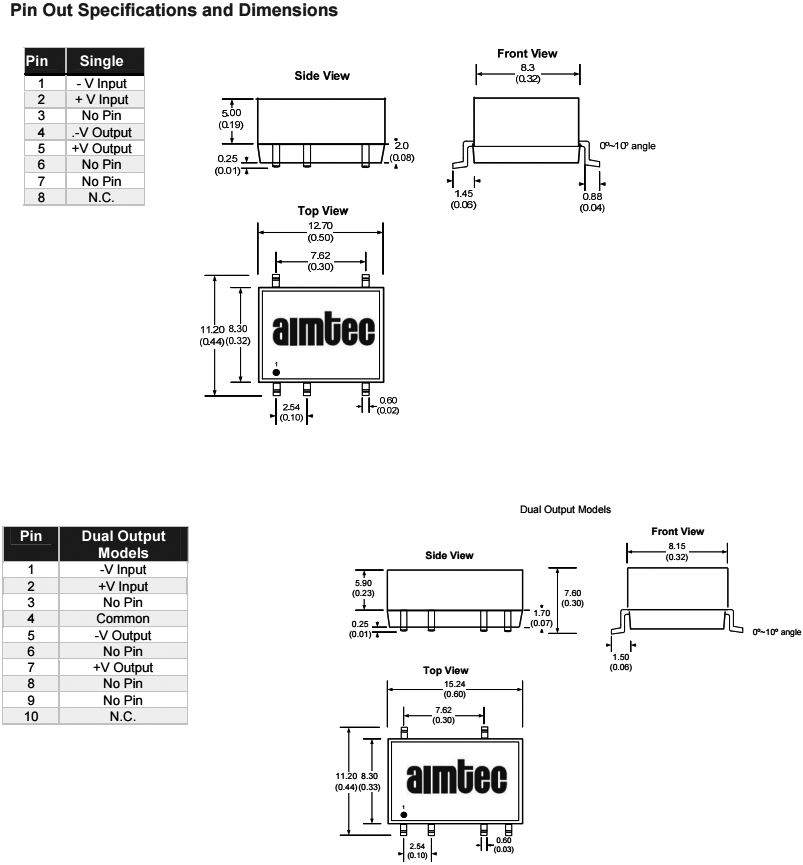

• Dimensions see
• Additional information
• Gross weight: 1.657 g
• Manufacturer part number: AM1LS-1205S-NZ
