Apraksts

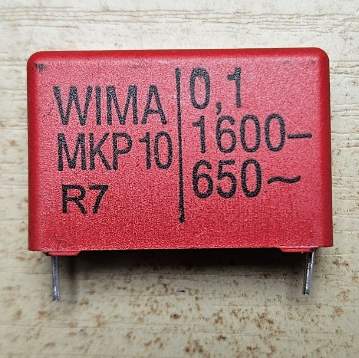

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 100nF
• Terminal pitch 27.5mm
• Tolerance ±20%
• Capacitor application high frequency circuits,  impulse circuits
• Body dimensions 13x24x31.5mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 1.4kV/μs
• Mounting THT
• Max. operating voltage 650V AC,  1.6kV DC
• Capacitors features
• low dielectric loss factor
• low ESR resistance value
• Additional information
• Gross weight: 8.65 g
• Manufacturer part number: MKP1T031006B00MSSD

Parametri

100nF
1600VDC
WIMA
650VAC
±20%
