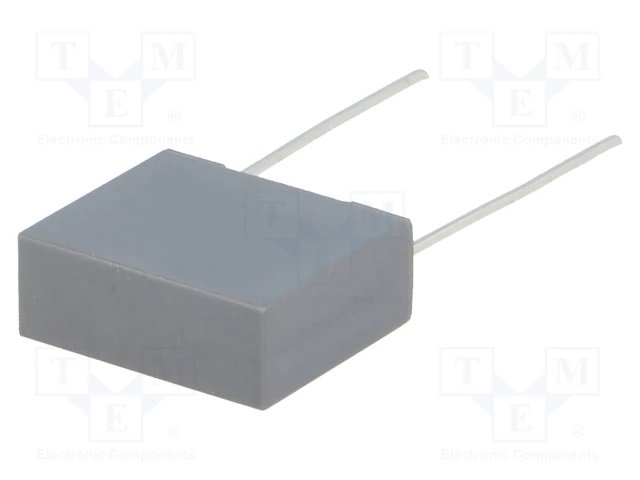

Apraksts

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 820pF
• Body dimensions 13x4x9mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 10mm
• Operating temperature -55...125°C
• Pulse resistance 6500V/μs
• Manufacturer series R76
• Lead length 25mm
• Conform to the norm AEC-Q200
• Flammability rating UL94V-0
• Kind of material flame retardant
• Max. operating voltage 600V AC,  1000V DC
• Climate class
• 55/105/56
• IEC 60068-1
• Additional information
• Gross weight: 0.7 g
• Manufacturer part number: R76QF082050H0J

Parametri

820pF
1000VDC
KEMET
600VAC
±5%

Papildu dokumentācija
