Apraksts

• Manufacturer NINIGI
• Connector pin header
• Connector type pin strips
• Connector type male
• Number of pins 20
• Connector variant double deck
• Spatial orientation straight
• Contacts pitch 2.54mm
• Electrical mounting THT
• Type of pin configuration 1x20
• Contact plating gold plated
• Maximum current 3A
• Max. operating voltage 250V AC

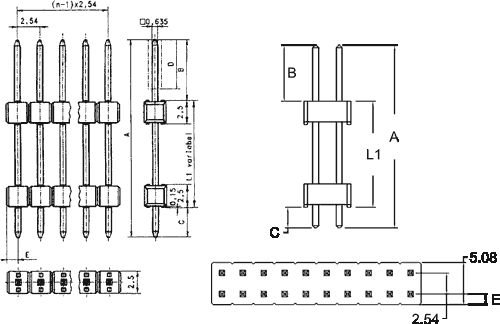

• L1 dimension 28mm
• E dimension 1.27mm
• Overall length 37.8mm
• B dimension 6.5mm
• C dimension 3.3mm

Parametri

20
20
2,54mm
Spraudnis/Spraudnis

Papildu dokumentācija
