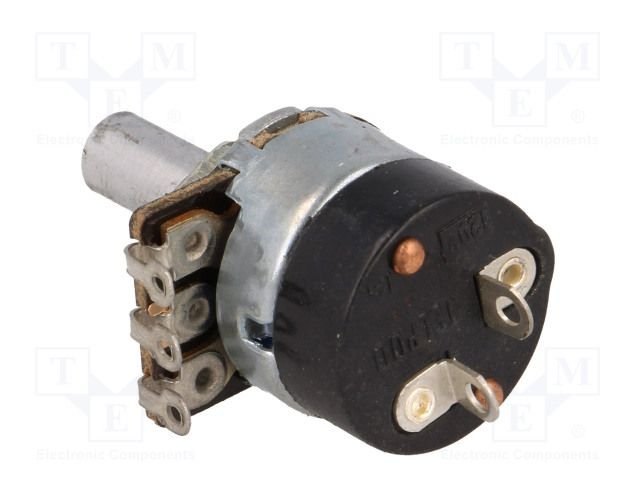

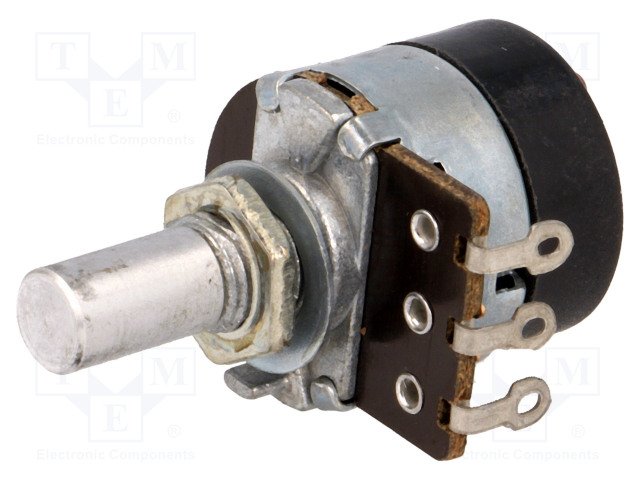

Apraksts

• Manufacturer TELPOD
• Type of potentiometer shaft
• Kind of potentiometer single turn
• Resistance 10kΩ
• Power 200mW
• Tolerance ±20%
• Mounting on panel
• Shaft diameter 6mm
• Shaft length 10mm
• Characteristics linear
• Body dimensions Ø18x18mm
• Thread length 6mm
• Leads solder lugs
• Track material carbon
• Shaft surface smooth
• Mechanical rotation angle 300°
• Terminal pitch 5.08mm
• L shaft length 16mm
• Max. operating voltage 200V
• Electrical operating parameters of the switch 120V AC, 16V DC, 1A Potentiometer features:
• mono
• with switch
• Additional information
• Gross weight: 10.7 g
• Manufacturer part number: PR185S56-10KA16P1

Parametri

10K
0.2W
Vienapgriezienu
Lineāre atkarība
Mono + slēdzis

Papildu dokumentācija
