Apraksts

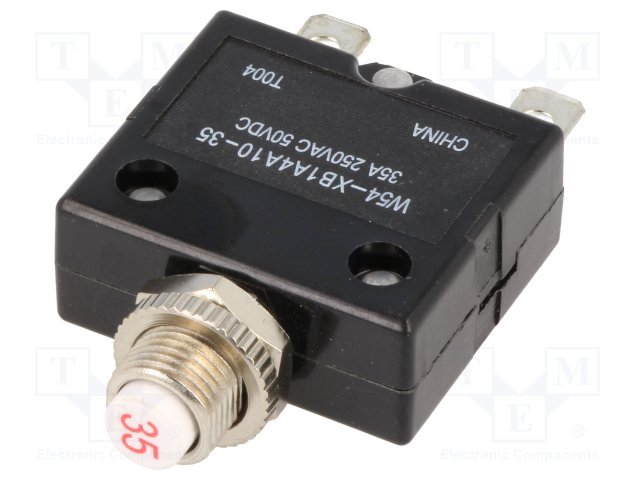

• Manufacturer TE Connectivity
• Type of protection circuit breaker
• Rated voltage 250V AC, 50V DC
• Rated current 35A
• Contacts configuration SPST-NC
• Number of poles 1
• Mounting on panel
• Operating temperature 0...60°C
• Breakers application industrial appliance
• Leads for soldering
• Mounting hole diameter Ø11.2mm
• Dielectric strenght 1.5kV AC
• Associated items 1-1423696-6

Parametri

SPST-NC
35A
250VAC
50VDC

Papildu dokumentācija
