Apraksts

• Manufacturer PIHER
• Type of potentiometer shaft
• Kind of potentiometer single turn
• Resistance  500Ω
• Power 200mW
• Mounting THT
• Shaft diameter 6mm
• Characteristics linear
• Body material plastic
• Potentiometer features mono
• Track material carbon
• Shaft surface knurled
• Poles number 1
• Max. operating voltage 250V DC
• Potentiometer series PC-16

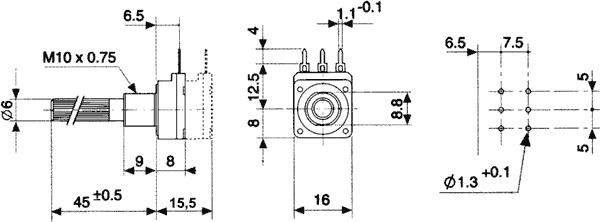

• Dimensions see
• Additional information
• Gross weight: 9.715 g
• Manufacturer part number: PC16SH10IP06501A2020TA

Parametri

500R
0.2W
Vienapgriezienu
Lineāre atkarība
Mono
