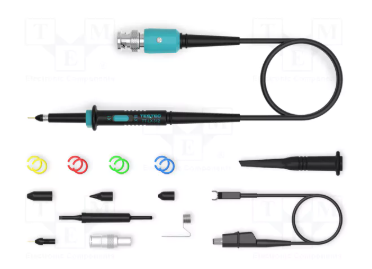

• Manufacturer TESTEC
• Type of measuring probe for oscilloscope
• Kind of probe passive
• Band 10Hz (1:1), 150Hz (10:1)
• Attenuator 1:1/10:1
• Max. input voltage 400V
• Input impedance 1MΩ/47pF (1:1), 10MΩ/13pF (10:1)
• Rise time 2.3ns (10:1), 35ns (1:1)
• Cable length 1.2m
• Cable/adapter structure
• BNC plug
• clip-on hook probe
• Standard equipment
• grounding lead terminated with insulated crocodile clip
• protective cap x2
• spring hook tip
• spring loaded tip
• trimmer tool
• Gross weight89.39 g
