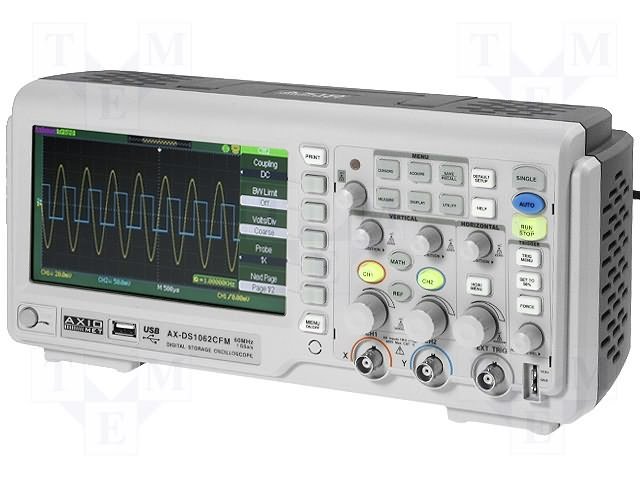

AX-DS1062CFM Oscilografs ciparu, 2 kanali, 60MHz
AX-DS1062CFM Oscilografs ciparu, 2 kanali, 60MHz
AX-DS1062CFM Oscilografs ciparu, 2 kanali, 60MHz AX-DS1062CFM Oscilografs ciparu, 2 kanali, 60MHz

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

AX-DS1062CFM Oscilografs ciparu, 2 kanali, 60MHz

Cena: 645.00 €
00014382
AX-DS1062CFM
0
  • Apraksts

    • Specification
    • Oscilloscope type digital
    • Band Ͱ4;60MHz
    • Number of channels 2
    • Data gathering 1Mpts/CH
    • Rise time 5,8ns
    • Display LCD 7" (480x234)
    • Time base 5n...50s/div
    • Sampling 1Gsps (in real time), 50Gsps (in equivalent time)
    • Input impedance 1MΩ;/14pF
    • Vertical resolution 8bit
    • Input coupling AC, DC, GND
    • Trigger modes automatic, normal, single
    • Overall dimensions (W x D x H) 399 x 110.5 x 148.5mm
    • Input sensitivity 2mV/div...5V/div
    • Max. input voltage 400V
    • Power supply 100...240 VAC, 45...440Hz
    • Weight 2.4kg
    • Horizontal accuracy ±0.01%
    • Trigger source:
    • CH1
    • CH2
    • external signal
    • supply voltage source
    • Features:
    • automatic measurement of Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, Bwid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
    • digital filter function
    • Holdoff function: 100ns...1,5s
    • Pass/Fail function
    • value averaging function with maximal 256 runs
    • RS232 interface
    • USB interface
    • colour LCD with adjustable contrast
    • mathematical functions: addition, subtraction, division, multiplication and FFT
    • measurements by means of cursors
    • X-Y operation mode
    • displays input waveform and FFT on divided screen
    • records input waveform
    • trigger modes: slope (negative, positive), impulse width, video signal
    • integrated FFT with algorithm selection: Hamming, Hanning, Blackman, Rectangular
    • memory for 20 settings
    • colour 7" LCD with contrast regulation
    • 20 measurement memory
    • Trigger coupling:
    • AC
    • DC
    • lowpass
    • highpass
    • Standard equipment:
    • 2 voltage probes with 1:1/10:1 divider
    • USB cable
    • software
