• Specification

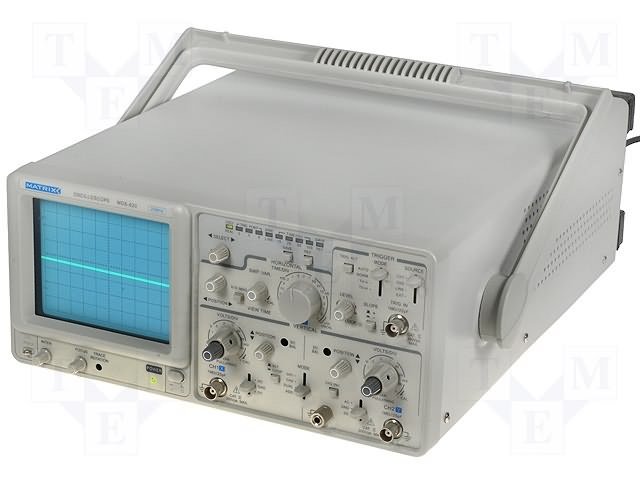

• Oscilloscope type analogue-digital
• Band Ͱ4;20MHz
• Number of channels 2
• Power consumption 35W
• Cathode ray tube blue colour, accelerating voltage: 2kV, size: 104x84mm
• Vertical deflection rise time: 17,5ns, sensitivity: 5mV/div...5V/div, accuracy: ±3% + 0,4mm, sinusoidal/linear interpolation function, max. input voltage: 400V (AC+DC peak-peak), 8 bit resolution (28 points/div), DC to 8MHz equivalent bandwidth, coupling: AC, DC, GND, operation modes: CH1, CH2, DUAL (ALT, CHOP), ADD
• Trigger trigger mode: NORM, AUTO, TV-V, TV-H, positive slope, negative slope
• Horizontal deflection maximal sampling rate: 20Msps, time base: 0,2µs/div...0,5s/div ±3%, resolution: 10bit (100 points/div), trigger mode: AUTO, NORM, ROLL
• X-Y mode sensitivity: 5mV/div...5V/div ±5%, bandwidth: X axis DC to 1MHz, phase shift: Ͱ4;3°
• Calibration voltage: 2V ±2%, source: 1kHz ±1,5%
• Frequency meter 40...6Hz
• Data gathering ALT: 0,2µs/div...0,2ms/div, CHOP: 0,5µs/div...10s/div, data record length: 1024B/CH
• Power supply 230VAC ±10% 50/60Hz
• Weight 8kg
• Dimensions 150 x 310 x 455mm
• Standard equipment:
• 2 oscilloscope probes
• mains cable
• Features:
• trigger level lock
• sinusoidal/linear interpolation function
• memory function
• pre-trigger function
• RS232 interface
• simultaneous observation of 2 independent signals
• easy recording of non-periodical and low frequency signals
• saturation and focus adjusting knobs on front panel
• X-Y operation mode
• sweep x10
• Z axis input
• CH1 channel output
• 1mV/div high sensitivity
• Toshiba high brightness CRT with internal graticule
• simultaneously displays information obout 4 signals
• TV signal triggered
