Apraksts

• Manufacturer HIGHLY
• Type of switch keypad
• Button marking POWER
• Number of positions 2
• Contacts configuration  DPDT
• DC contacts rating @R  0.1A / 30V DC
• Actuator colour silver
• Illumination LED
• Backlight colour red/green
• Mounting THT
• Leads for PCB,  straight
• Switching method  ON-ON
• Operating temperature -10...80°C
• Manufacturer series PB613

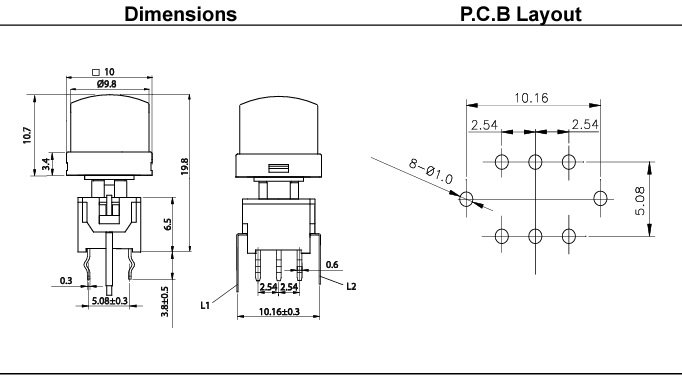

• Body dimensions 10x10mm
• Stable positions number 2
• Operating Force 1.5N
• Switches features colour change by changing polarization
• Max. contact resistance: 50mΩ
• Min. insulation resistance 100MΩ
• Electrical life 10000 cycles
• Button shape round
• Terminal pitch 2.54x5.08mm
• Button height  19.8mm

Parametri

DPDT
0.1A/30VDC
ON-ON
Poga
Ar fiksāciju
Bez vītnes
LED2.2VDC

Papildu dokumentācija
