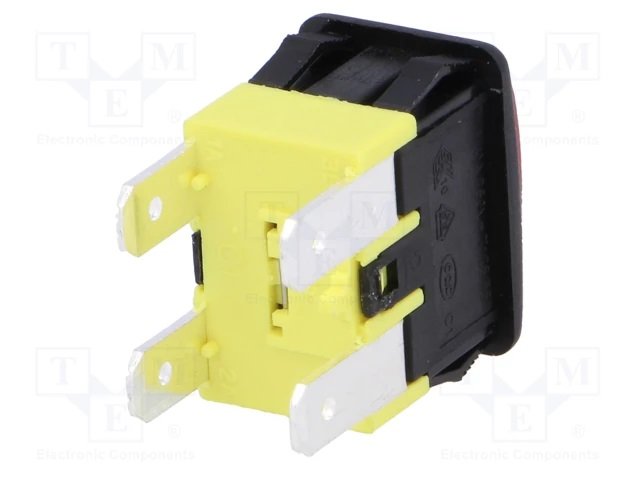

Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch push-button
• Number of positions 2
• Contacts configuration  DPST-NO
• AC contacts rating @R  16A / 250V AC
• (at resistive load)
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• Backlight colour red
• Illumination neon lamp 230V
• Leads 4,8x0,8mm connectors
• Operating temperature -20...125°C
• Max. contact resistance: 20mΩ
• Button shape prominent,  rectangular
• Mounting hole diameter 19.2x12.9mm
• Body material thermoplastic
• Contact material silver alloy
• Actuator colour red
• Height above panel 7.5mm
• Mounting on panel
• Body dimensions 18.8x12.8x15mm
• Terminals plating silver plated
• Terminals material copper alloy
• Stable positions number 2

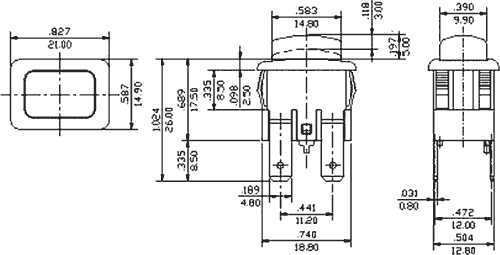

• Dimensions see
• Additional information
• Gross weight: 6 g
• Manufacturer part number: PS5-210-PG-BR-S

Parametri

DPST-NO
16A/250VAC
OFF-ON
Poga
Ar fiksāciju
Bez vītnes
Bez apgaismojuma

Papildu dokumentācija
