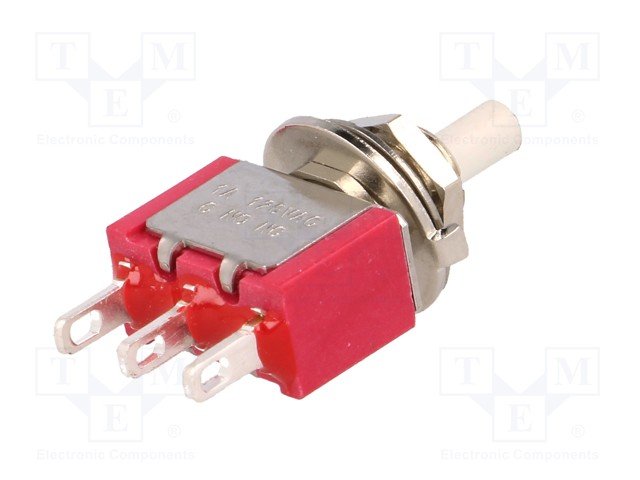

Poga SPDT, ON-(ON), 1A/125VAC, 1A/28VDC, Ø6.35mm, bez fiksacijas, IC SWITCHES

Cena: 6.50 €
00016403
IC1507P1B10M1QE
2
  • Apraksts

    • Manufacturer IC SWITCHES
    • Type of switch push-button
    • Number of positions 2
    • Contacts configuration  SPDT
    • AC contacts rating @R  1A / 125V AC
    • DC contacts rating @R  1A / 28V DC
    • Switching method  ON-(ON)
    • Illumination none
    • Leads for soldering
    • Operating temperature -30...85°C
    • Electrical life 50000 cycles
    • Max. contact resistance: 10mΩ
    • Button shape prominent,  round
    • Actuator colour white
    • Min. insulation resistance 1000MΩ
    • Mounting on panel,  THT
    • Stable positions number 1

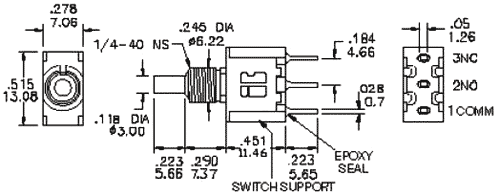

    • Dimensions see
    • Additional information
    • Gross weight: 4.9 g
    • Manufacturer part number: IC1507P1B10M1QE

    Parametri

    SPDT
    1A/125VAC
    1A/28VDC
    ON-(ON)
    Poga
    Bez fiksācijas
    M6
    Bez apgaismojuma
