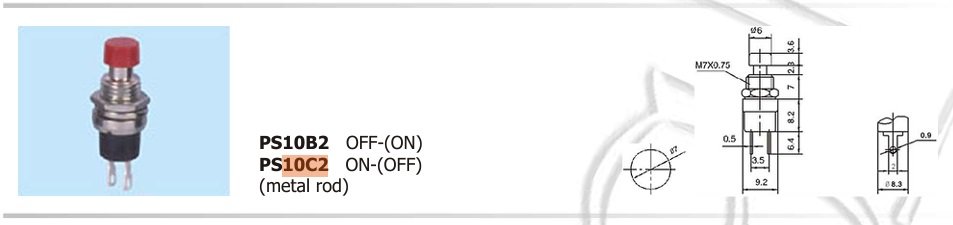

• Manufacturer NINIGI
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPST-NC
• AC contacts rating @R  1A / 250V AC
• (at resistive load)
• Switching method  ON-(OFF)
• (the position in bracket indicates momentary position.)
• Illumination none
• Leads for soldering
• Operating temperature -25...70°C
• Electrical life 50000 cycles
• Max. contact resistance: 20mΩ
• Button shape prominent,  round
• Mounting hole diameter Ø7mm
• Body material metal-plastic
• Actuator colour black
• Height above panel 12mm
• Mounting on panel
• Body dimensions Ø9.2x27.5mm
• Stable positions number 1
• Additional information
• Gross weight: 3.561 g
• Manufacturer part number: PS10C2BK

Parametri

SPST-NC
1A/250VAC
ON-(OFF)
Poga
Bez fiksācijas
M7
Bez apgaismojuma
