Apraksts

• Specification
• Switch type push-button
• Stable positions number monostable
• Actuator colour green
• Leads for soldering, solder lugs
• Max. contact resistance: 20mΩ;
• AC contacts rating
• (at resistance load) 1 A / 250 V
• Switching method OFF-(ON)
• Electrical life 50000cycles

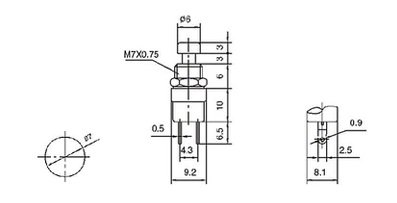

• Mounting hole diameter Ø;7mm
• Body dimensions Ø;9.2 x 28.5mm
• Body material metal-plastic
• Height above panel 12mm

Parametri

SPST-NO
1A/250VAC
OFF-(ON)
Poga
Bez fiksācijas
M7
Bez apgaismojuma

Papildu dokumentācija
