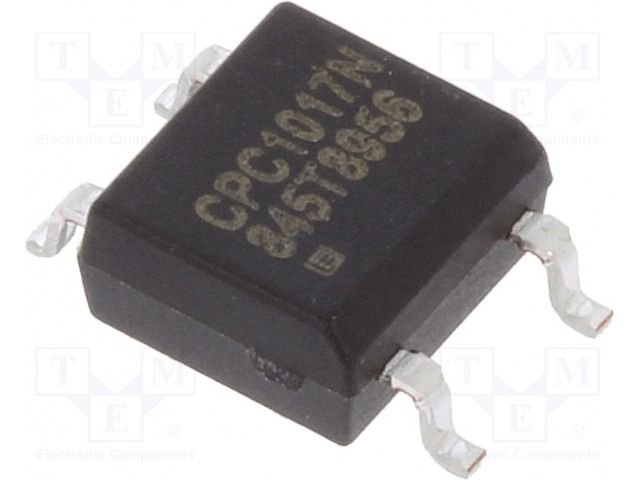

CPC1017N Pusvadītāju relejs, SPST-NO, IXYS, SOP4
CPC1017N Pusvadītāju relejs, SPST-NO, IXYS, SOP4

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

CPC1017N Pusvadītāju relejs, SPST-NO, IXYS, SOP4

Cena: 1.47 €
00027045
CPC1017N
20
  • Apraksts

    • Manufacturer IXYS
    • Type of relay solid state
    • Contacts configuration SPST-NO
    • Control current max. 50mA
    • Max. operating current 100mA
    • Switched voltage max. 60V AC, max. 60V DC
    • Relay variant 1-phase, current source
    • On-state resistance 16Ω
    • Mounting SMT
    • Case SOP4
    • Operating temperature -40...85°C
    • Body dimensions 4.09x3.81x2.03mm
    • Insulation voltage 1.5kV
    • Turn-on time 10ms
    • Turn-off time 10ms
    • Series OptoMOS
    • Kind of output MOSFET Additional information
    • Gross weight: 0.081 g
