Apraksts

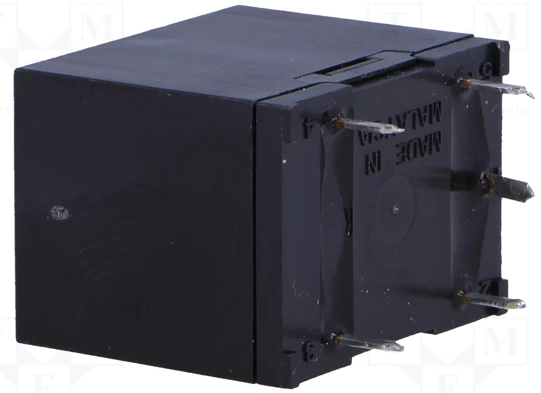

• Manufacturer OMRON OCB
• Type of relay electromagnetic

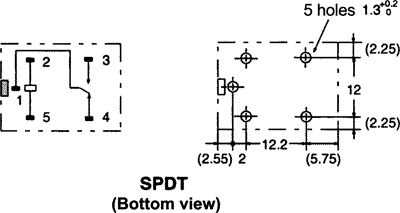

• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  10A / 240V AC
• DC contacts rating @R  8A / 30V DC
• Contact current max. 10A
• Switched voltage max. 125V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Operate time 10ms

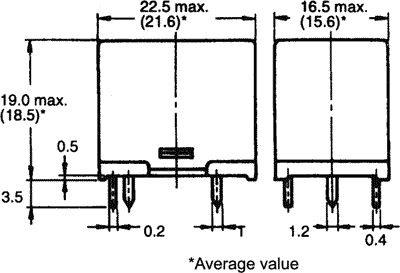

• Body dimensions 22.5x16.5x19mm
• Release time 5ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series G5LE
• Contact resistance 100mΩ
• Terminal pitch 2mm
• Coil current 33.3mA
• Enclosure description standard seal
• Papildu informācijas
• Masa bruto: 11.35 g
• Oriģināls simbols: G5LE-1 12VDC

Parametri

OMRON
12VDC
SPDT
10A/250VAC
8A/30VDC
uz pārslēgšanu
1
monostabilais
1
