Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• Contact current max. 30A
• DC contacts rating @R
• (at resistive load) 20A / 12V DC
• Relay variant automotive, subminiature
• Coil voltage min. 6.9V DC
• Coil voltage max. 16V DC
• Coil resistance 254Ω
• Contact material AgSnO2
• Operating temperature -40...105°C
• Body dimensions 12x12.9x9.9mm
• Mounting PCB
• Coil power consumption 550mW
• Switched voltage max. 16V DC

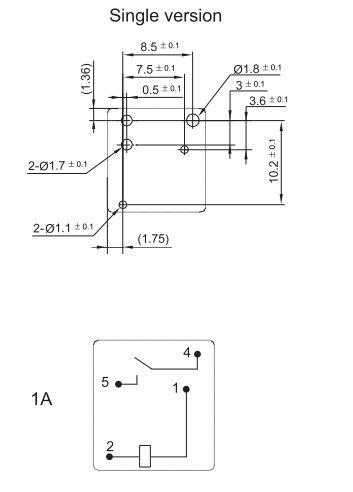

• Dimensions see
• Output configuration see Additional information
• Gross weight: 3.98 g
• Manufacturer part number: HFKC/012-HT

Parametri

HONGFA RELAY
12VDC
SPST-NO
20A/12VDC
uz saslēgšanu
1
monostabilais
1

Papildu dokumentācija
