Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• Contact current max. 20A
• Relay series G4A
• Relay variant power
• Operating temperature -20...60°C
• Mounting PCB
• Leads for PCB
• Coil resistance 160Ω;
• Coil power consumption 900mW
• Switched voltage max 250V AC, max 30V DC
• Contact resistance 100mΩ;
• DC contacts rating
• (at resistance load) 15 A / 30 VDC

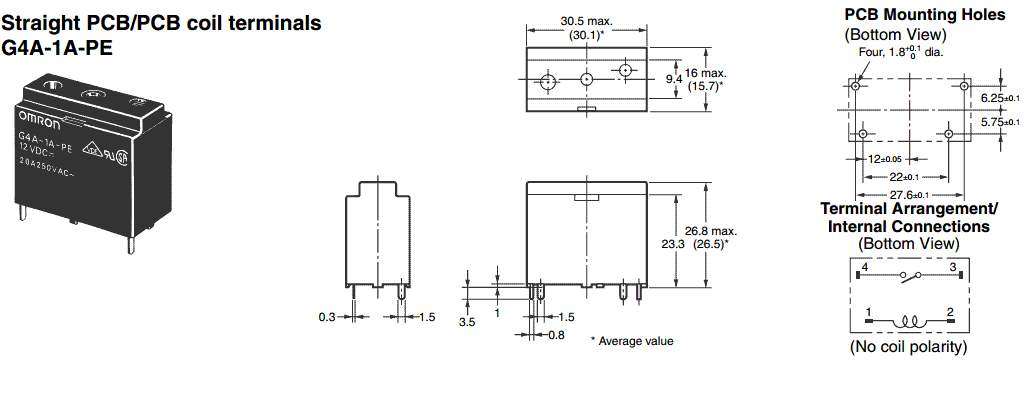

• Body dimensions 30.5 x 16 x 26.8mm
• AC contacts rating
• (at resistance load) 20 A / 250 VAC
• Coil current 75mA

Parametri

OMRON
12VDC
SPST-NO
20A/250VAC
15A/30VDC
uz saslēgšanu
1
monostabilais
1

Papildu dokumentācija
