Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 5A
• AC contacts rating @R(at resistive load) 5A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 5A / 30V DC
• at resistive load
• Switched voltage max. 30V DC, max. 250V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 720Ω
• Coil voltage min. 9V DC
• Coil voltage max. 20.4V DC
• Operate time 8ms

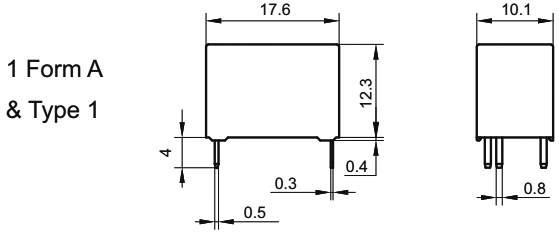

• Body dimensions 17.6x10.1x12.3mm
• Release time 4ms
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Contact resistance 70mΩ
• Contact material AgNi

Parametri

HONGFA RELAY
12VDC
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1
1

Papildu dokumentācija
