Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 220V AC
• Contact current max. 40A
• Relay series R40N
• Relay variant power
• Operating temperature -55...100°C
• Mounting PCB
• Coil resistance 13.49kΩ
• Switched voltage max 300V AC, max 110V DC
• Coil power consumption 0.9VA
• DC contacts rating @R
• (at resistance load) 40 A / 30 VDC

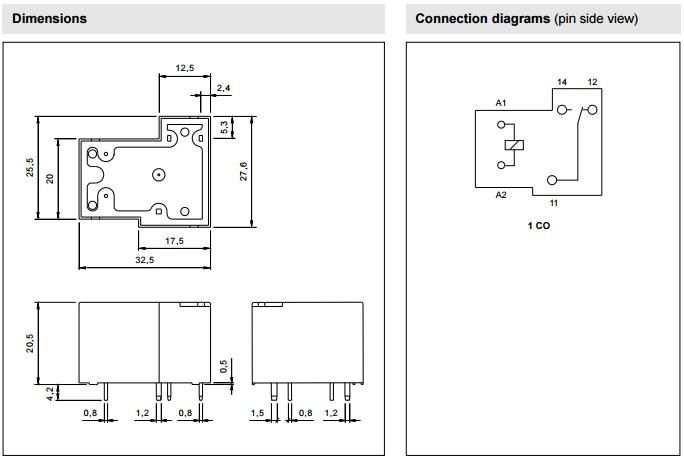

• Body dimensions 32.5 x 27.6 x 20.5mm
• Contact resistance 30mΩ
• AC contacts rating @R
• (at resistance load) 40 A / 240 VAC
• Operate time 15ms
• Release time 10ms
• Mechanical durability 100000000cycles
• Contact material AgSnO2
• Electrical life 1000000cycles
• IP rating IP64

Parametri

RELPOL
230VAC
SPDT
40A/240VAC
40A/30VDC
uz pārslēgšanu
monostabilais
1
