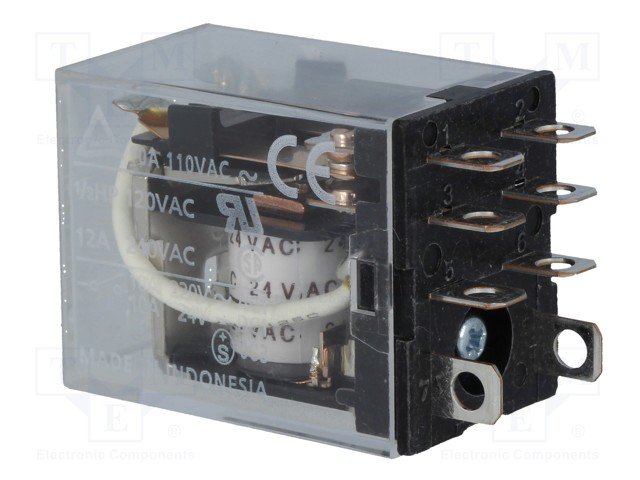

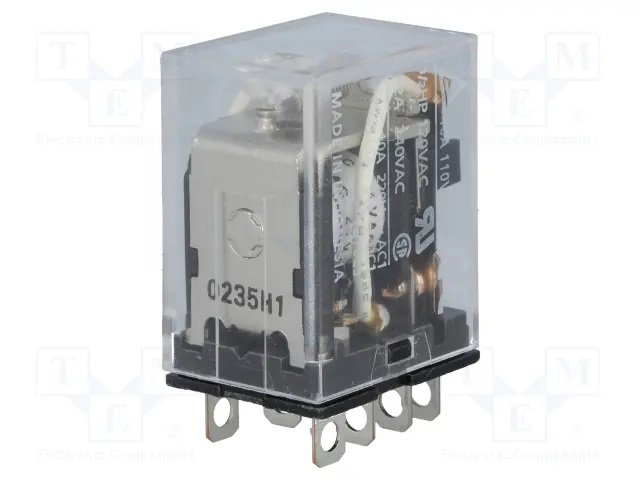

Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V AC
• AC contacts rating @R
• (at resistive load) 10A / 110V AC
• DC contacts rating @R
• (at resistive load) 10A / 24V DC
• Contact current max. 10A
• Switched voltage max. 125V DC, max. 250V AC
• Relay variant industrial
• Mounting socket
• Coil voltage min. 19.2V AC
• Relay series LY2
• Operating temperature -25...40°C

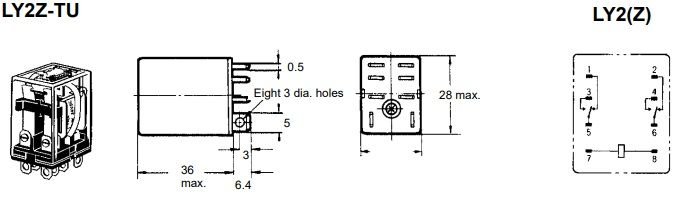

• Body dimensions 28x21.5x36mm
• Coil resistance 180Ω
• Mechanical durability 50000000 cycles
• Operate time 25ms
• Release time 25ms
• Contact resistance 50mΩ
• Coil power consumption 1.2VA
• Leads 4,8x0,5mm connectors
• Switching capacity 240W, 1100VA
• Related items PT08-0, PTF08A-E

Parametri

OMRON
AC24V
DPDT
2x10A/110VAC
2x10A/24VDC
uz pārslēgšanu
monostabilais
2
