Apraksts

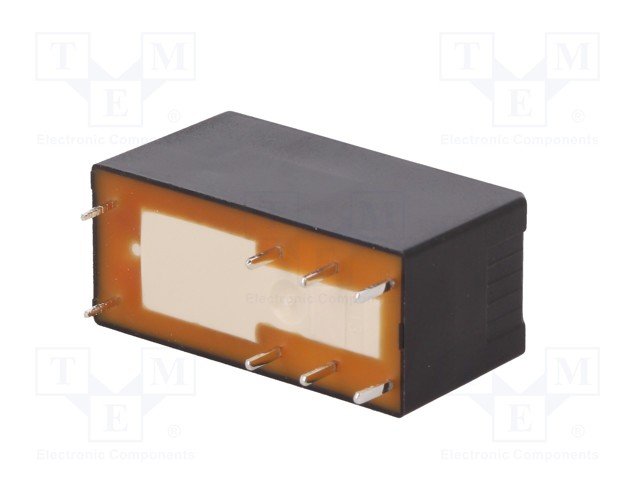

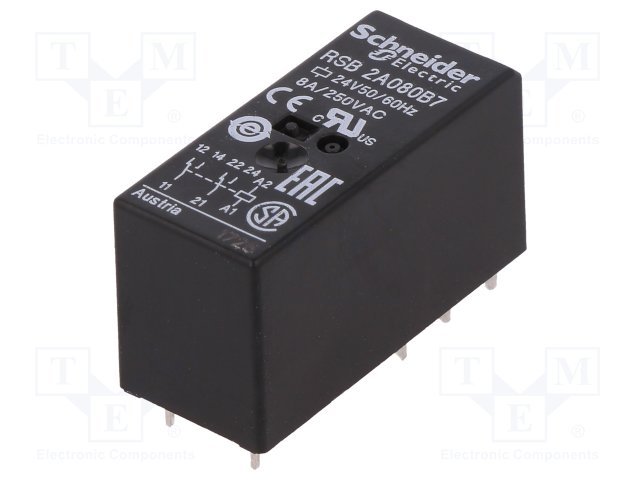

• Manufacturer SCHNEIDER ELECTRIC
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V AC
• AC contacts rating @R
• (at resistance load) 8 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 8 A / 28 VDC
• Contact current max. 8A
• Switched voltage max 250V AC, max 250V DC
• Relay variant miniature
• Mounting socket
• Body dimensions 29 x 15.7 x 12.5mm
• Coil power consumption 0.75VA
• Operating temperature -40...70°C
• Relay series RSB
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm

Parametri

SCHNEIDER ELECTRIC
AC24V
DPDT
2x8A/250VAC
2x8A/28VDC
uz pārslēgšanu
monostabilais
2
