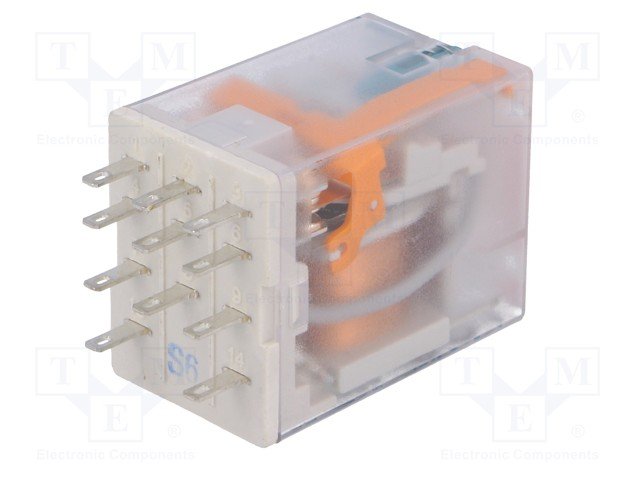

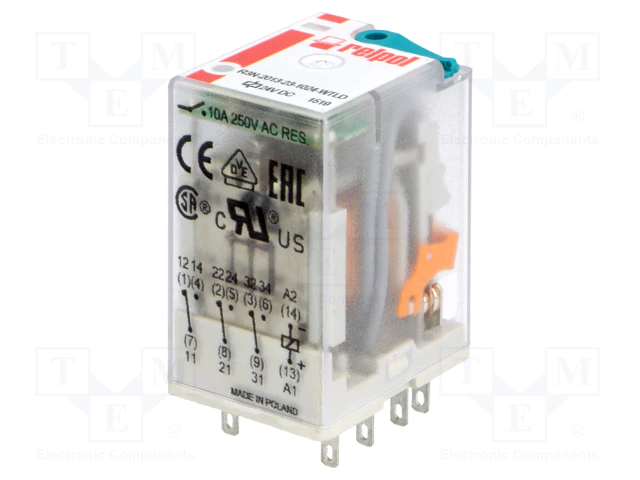

Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL
Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL
Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL
Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC24V, 3PDT, 3x10A/250VAC, 3x10A/24VDC, 640Ω(37.5mA), IP40, trīs kontakti uz pārslēgšanu, 27.5x21.2x35.6mm, RELPOL

Cena: 15.16 €
00026771
R3N2013231024WT
2
  • Apraksts

    • Manufacturer RELPOL
    • Type of relay electromagnetic
    • Contacts configuration 3PDT
    • Contacts configuration
    • Rated coil voltage 24V DC
    • Contact current max. 20A
    • AC contacts rating @R(at resistive load) 10A / 250V AC
    • at resistive load
    • DC contacts rating @R(at resistive load) 10A / 24V DC
    • at resistive load
    • Switched voltage max. 250V DC, max. 440V AC
    • Relay variant industrial
    • Mounting socket
    • Relay series R3N
    • Operating temperature -40...70°C

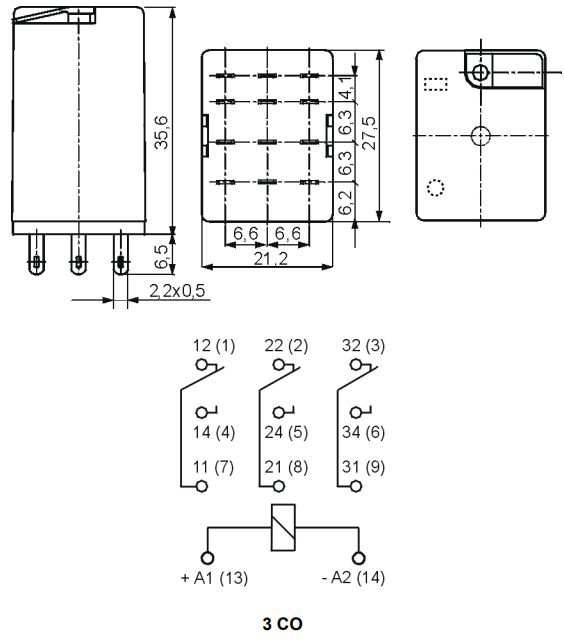

    • Body dimensions 27.5x21.2x35.6mm
    • Coil resistance 640Ω
    • Contact resistance 100mΩ
    • Coil power consumption 0.9W
    • Leads connectors 2,2x0,5mm
    • IP rating IP40
    • Number of pins 11
    • OEM number 860405
    • Optional equipment
    • LED indicator
    • mechanical indicator
    • overvoltage damping diode
    • test button with blocking function
    • Gross weight34.69 g

    Parametri

    RELPOL
    DC24V
    3PDT
    3x10A/250VAC
    3x10A/24VDC
    uz pārslēgšanu
    monostabilais
    3
