Apraksts

• Manufacturer FUJITSU
• Type of relay electromagnetic

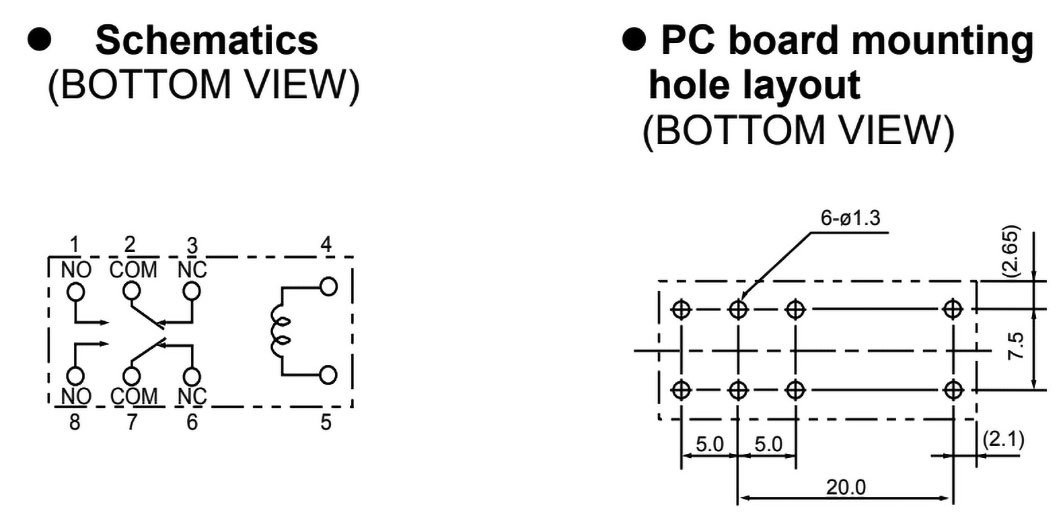

• Contacts configuration DPDT
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 5A
• AC contacts rating @R(at resistive load) 5A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 5A / 24V DC
• at resistive load
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.1kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 39.6V AC
• Operate time 15ms

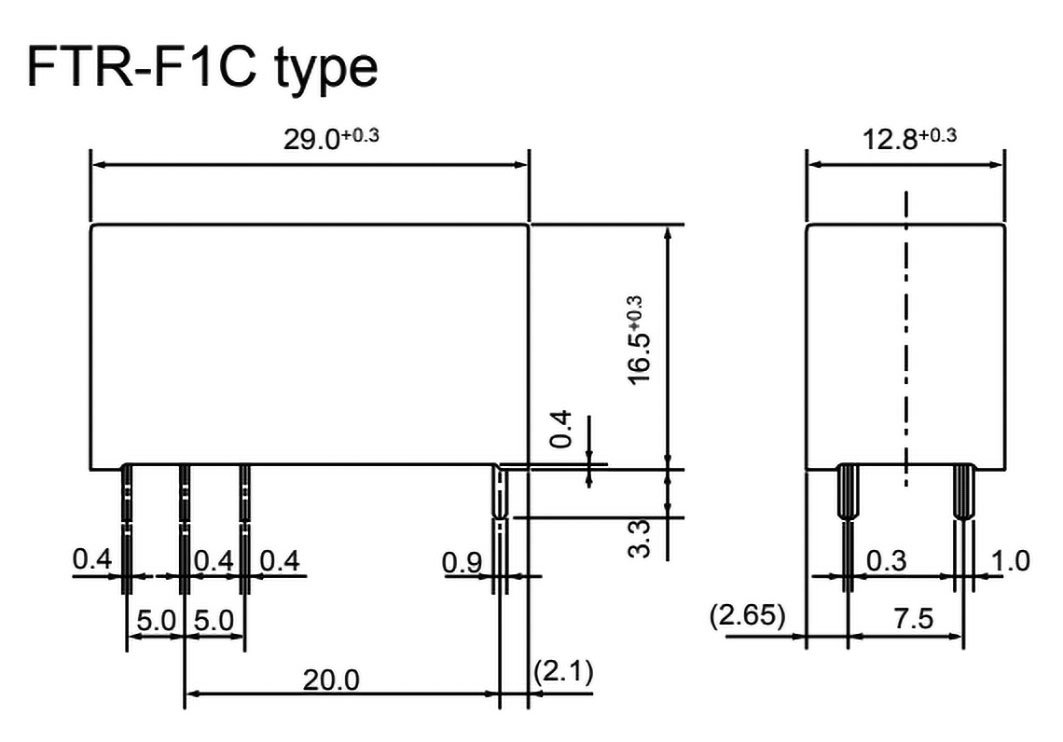

• Body dimensions 29x12.8x16.5mm
• Release time 5ms
• Coil power consumption 530mW
• Operating temperature -40...75°C
• Relay series FTR-F1
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 5mm
• Contact plating gold-plated
• Gross weight11.693 g

Parametri

DC24V
DPDT
2x5A/250VAC
uz pārslēgšanu
monostabilais
2
FUJITSU
2x5A/24VDC
