Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 8A / 250V AC
• DC contacts rating @R
• (at resistance load) 8A / 24V DC
• Contact current max. 8A
• Switched voltage max. 300V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Operate time 15ms

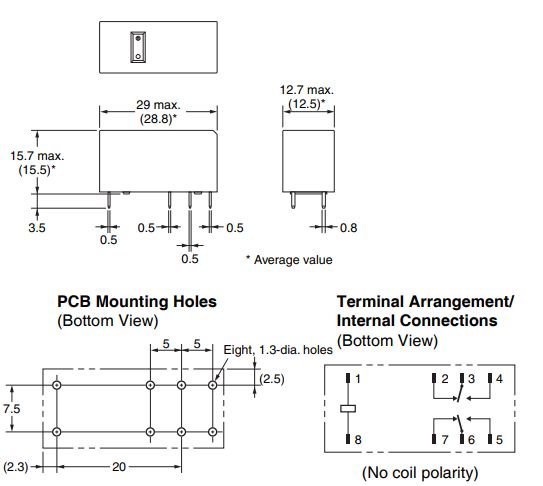

• Body dimensions 29x12.7x15.7mm
• Release time 5ms
• Operating temperature -40...85°C
• Relay series G2RL
• Contact resistance 100mΩ
• Terminal pitch 5mm
• Coil current 16.7mA
• Enclosure description standard seal
• Leads for PCB Additional information
• Gross weight: 11.65 g

Parametri

OMRON
DC24V
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
monostabilais
2

Papildu dokumentācija
