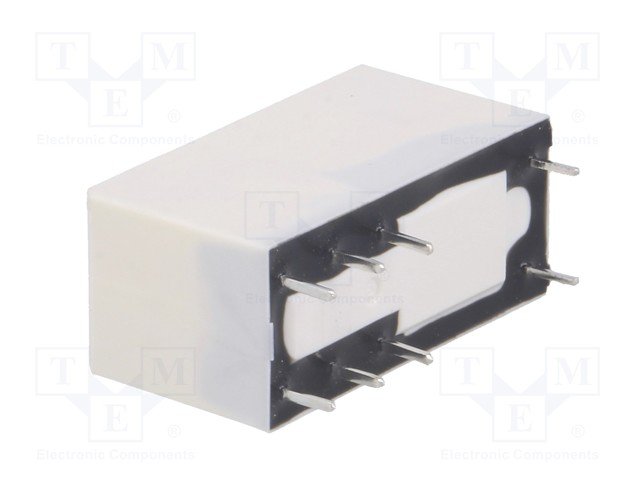

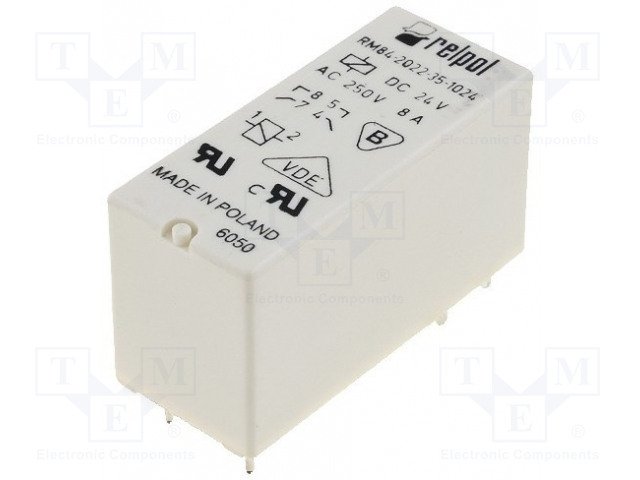

Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL
Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL
Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL
Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC24V, DPST-NO, 2x8A/250VAC, 2x8A/24VDC, 1.44kΩ(16mA), IP67, divi kontakti uz saslēgšanu, 29x12.7x15.7mm, RELPOL

Cena: 2.33 €
00015877
RM84-2022-35-1024
8
  • Apraksts

    • Manufacturer RELPOL
    • Type of relay electromagnetic
    • Contacts configuration  DPST-NO
    • Rated coil voltage 24V DC
    • AC contacts rating @R  8A / 250V AC
    • DC contacts rating @R  8A / 24V DC
    • Contact current max. 8A
    • Switched voltage max. 250V DC,  max. 440V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 1.44kΩ
    • Coil voltage min. 16.8V DC
    • Coil voltage max. 61.2V DC
    • Operate time 7ms

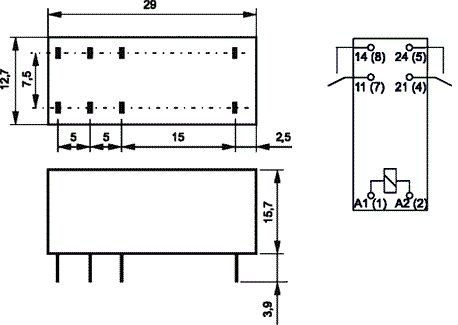

    • Body dimensions 29x12.7x15.7mm
    • Release time 3ms
    • Coil power consumption 480mW
    • IP rating IP67
    • Mechanical durability 30000000 cycles
    • Operating temperature -40...85°C
    • Weight 14g
    • Relay series RM84
    • Contact resistance 100mΩ
    • Contact material AgNi
    • Terminal pitch 5mm
    • Height 15.7mm
    • Related items GD50,  GZ80,  GZM80,  GZM80-BK,  GZT80,  PW80
    • Number of pins 6
    • OEM number 600468
    • Body colour white
    • Additional information
    • Gross weight: 13.22 g
    • Manufacturer part number: RM84-2022-35-1024

    Parametri

    RELPOL
    DC24V
    DPST-NO
    2x8A/250VAC
    2x8A/24VDC
    uz saslēgšanu
    monostabilais
    2
