Apraksts

• Manufacturer SHORI ELECTRIC
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 17A / 277VAC
• DC contacts rating @R
• (at resistance load) 16A / 30VDC
• Contact current max. 16A
• Switched voltage max 277V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.6kΩ

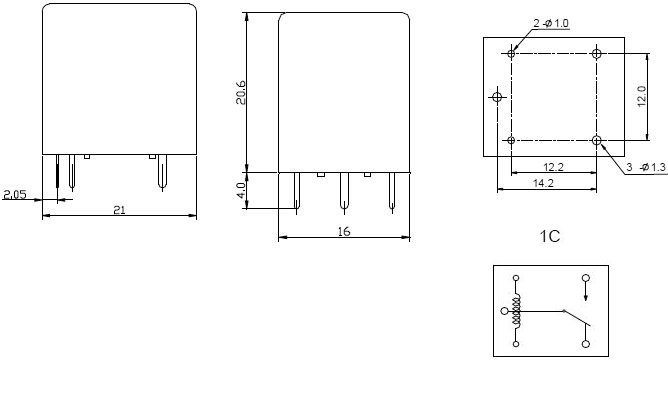

• Body dimensions 21 x 20.6 x 16mm
• Coil power consumption 450mW
• Mechanical durability 10000000cycles
• Operating temperature -40...70°C
• Weight 13g
• Relay series S22
• Contact resistance 100mΩ
• Electrical life 100000cycles
• Coil current 30mA

Parametri

SHORI ELECTRIC
DC24V
SPDT
16A/250VAC
16A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
