Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 6A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• at resistive load
• Switched voltage max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 147Ω
• Coil voltage min. 16,8V DC

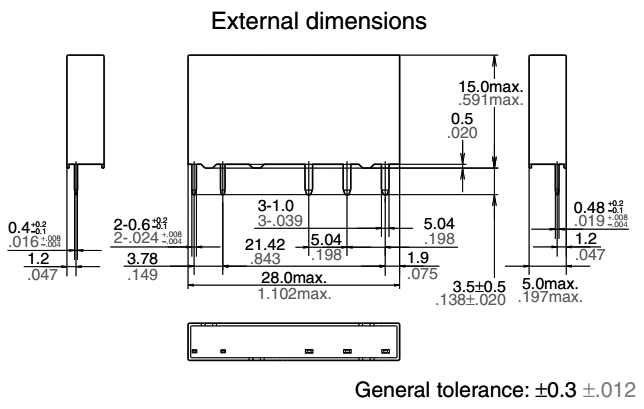

• Body dimensions 28x5x15mm
• Coil power consumption 170mW
• Mechanical durability 5000000 cykli
• Operating temperature -40...85°C
• Relay series APF
• Contact material AgNi
• Coil current 7,1mA

Parametri

PANASONIC
DC24V
SPDT
6A/250VAC
uz pārslēgšanu
monostabilais
1
