Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity
Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity
Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity
Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC24V, SPDT, 8A/250VAC, 8A/30VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 28.5x10.1x12.3mm, TE Connectivity

Cena: 3.04 €
00012249
RY611024
10
  • Apraksts

    • Manufacturer TE Connectivity
    • Type of relay electromagnetic
    • Contacts configuration  SPDT
    • Rated coil voltage 24V DC
    • AC contacts rating @R  8A / 250V AC
    • (at resistive load)
    • DC contacts rating @R  8A / 30V DC
    • (at resistive load)
    • Contact current max. 8A
    • Switched voltage max. 300V DC,  max. 400V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 2.35kΩ
    • Operate time 9ms
    • Body dimensions 28.5x10.1x12.3mm
    • Release time 5ms
    • Coil power consumption 220mW
    • IP rating IP67
    • Mechanical durability 30000000 cycles
    • Operating temperature -40...85°C
    • Weight 8g
    • Relay series RYII
    • Switching capacity 2000VA
    • Contact material AgNi
    • Terminal pitch 3.2mm
    • Coil current 10.2mA

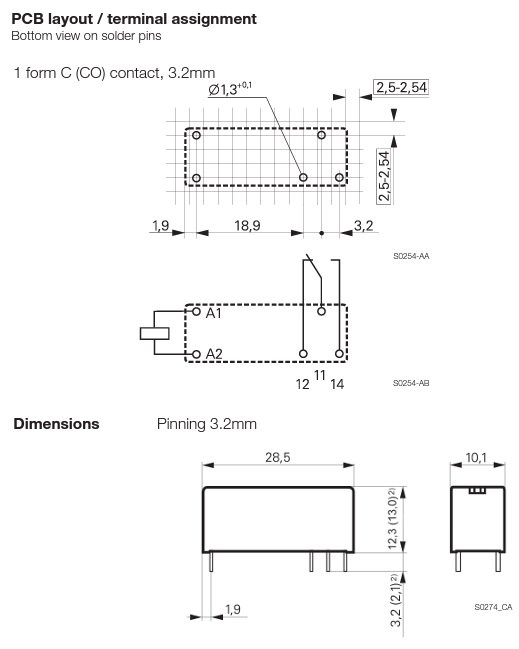

    • Dimensions see
    • Additional information
    • Gross weight: 7.85 g
    • Manufacturer part number: 2-1393225-1

    Parametri

    TE Connectivity
    DC24V
    SPDT
    8A/250VAC
    8A/30VDC
    uz pārslēgšanu
    monostabilais
    1
