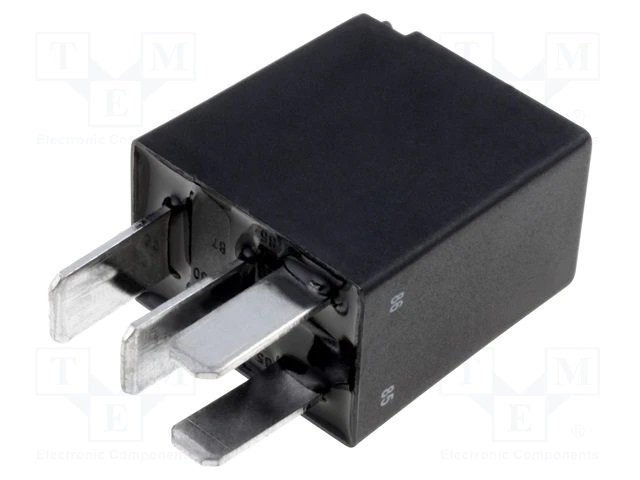

Apraksts

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 24V DC
• Contact current max. 25A
• DC contacts rating @R  20A / 14V DC
• (at resistive load)
• Relay variant automotive
• Coil resistance 480Ω
• Operating temperature -40...85°C

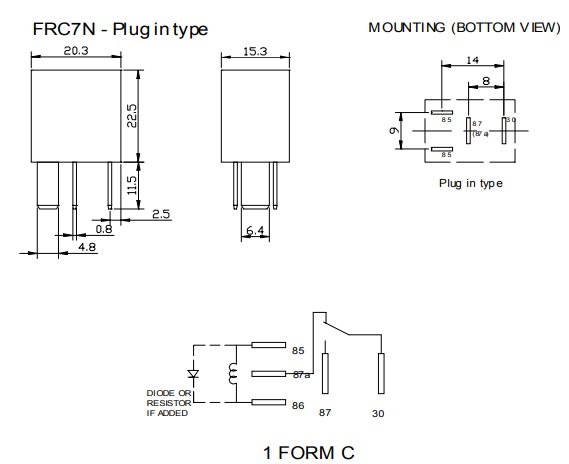

• Body dimensions 15.5x23x26mm
• Mounting socket
• Coil power consumption 1.2W
• Relay series FRC7
• Contact resistance 50mΩ
• Leads 4,8x0,8mm connectors,  6,4x0,8mm connectors
• Mechanical durability 10000000 cycles
• Weight 18.5g
• Coil current 50mA
• Operate time 10ms
• Release time 7ms
• Electrical life 100000 cycles
• Switched voltage max. 14V DC
• Papildu informācijas
• Masa bruto: 19.04 g
• Oriģināls simbols: FRC7A-S-DC24V

Parametri

FORWARD INDUSTRIAL CO.
DC24V
SPST-NO
20A/14VDC
uz saslēgšanu
monostabilais
1
