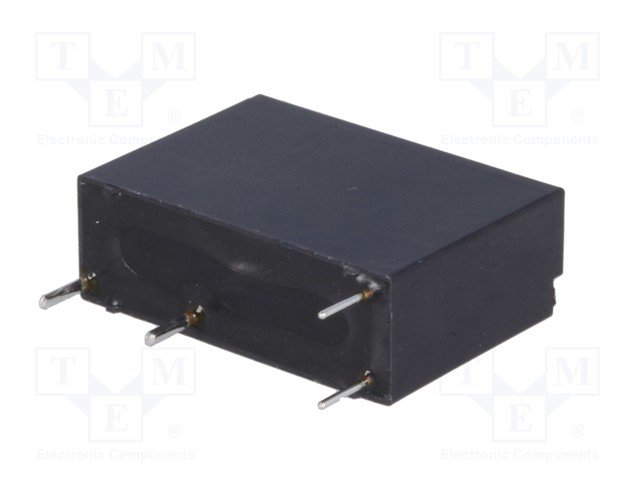

Apraksts

• Manufacturer PANASONIC
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 3 A / 30 VAC
• DC contacts rating @R
• (at resistance load) 5 A / 277 VDC
• Contact current max. 5A
• Switched voltage max 30V DC, max 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ
• Coil voltage min. 18V DC

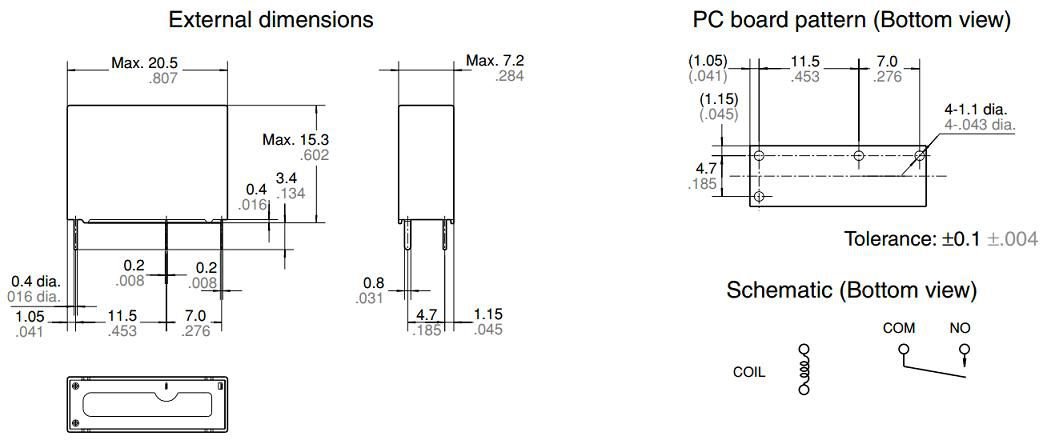

• Body dimensions 20.5 x 7.2 x 15.3mm
• Coil power consumption 200mW
• Mechanical durability 5000000cycles
• Operating temperature -40...85°C
• Relay series ALDP
• Contact material AgNi
• Coil current 8.3mA

Parametri

PANASONIC
DC24V
SPST-NO
5A/250VAC
3A/30VDC
uz saslēgšanu
monostabilais
1
