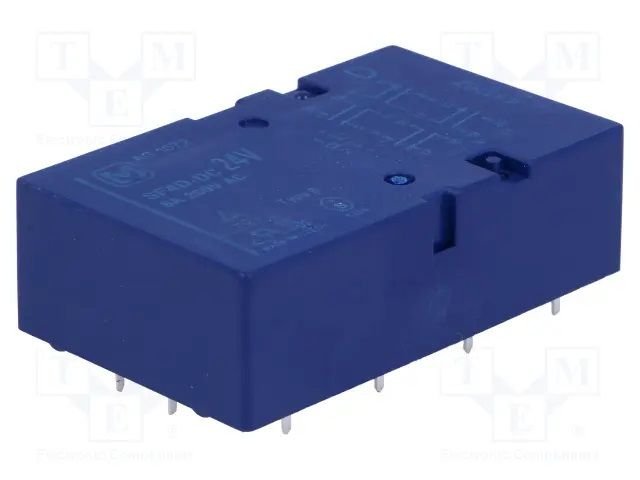

Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration SPST-NO x4 + SPST-NC x4
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistive load) 6A / 250V AC
• DC contacts rating @R
• (at resistive load) 3A / 24V DC
• Contact current max. 6A
• Switched voltage max. 220V DC, max. 400V AC
• Relay variant safety
• Mounting PCB
• Coil resistance 1152Ω

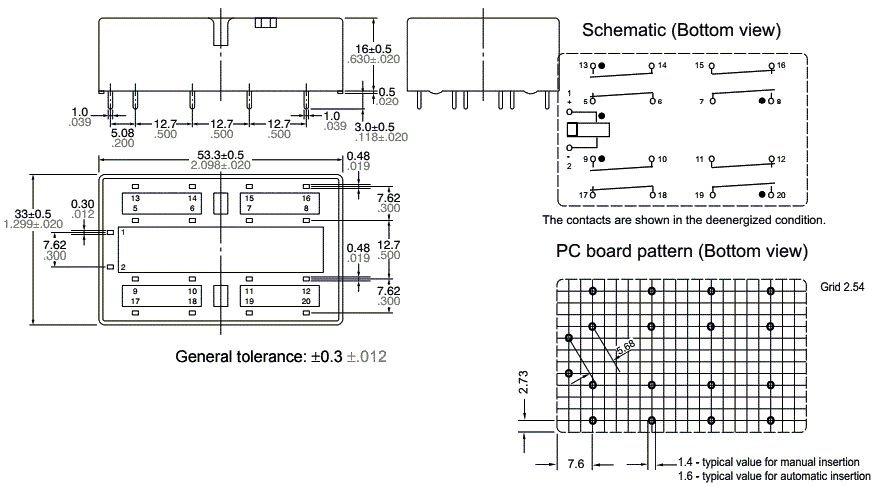

• Body dimensions 53.3x33x16.5mm
• Coil power consumption 500mW
• Operating temperature -40...70°C
• Relay series SF4D
• Contact resistance 30mΩ
• Contact material AgSnO2
• Terminal pitch 10.16mm
• Contact plating gold-plated

Parametri

PANASONIC
DC24V
SPST-NO x4 + SPST-NC x4
8x6A/250VAC
8x3A/24VDC
uz pārslēgšanu
monostabilais
8

Papildu dokumentācija
