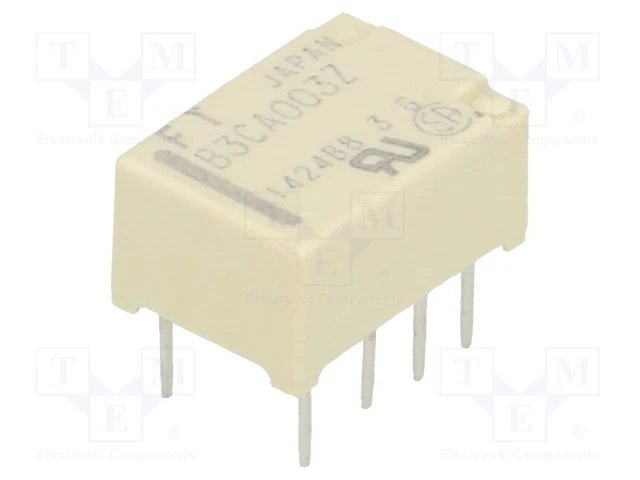

Apraksts

• Manufacturer FUJITSU
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 3V DC
• AC contacts rating @R  0.3A / 125V AC
• (at resistive load)
• DC contacts rating @R  1A / 30V DC
• (at resistive load)
• Contact current max. 2A
• Switched voltage max. 220V DC,  max. 250V AC
• Relay variant signal,  subminiature
• Mounting THT
• Coil resistance 64.3Ω
• Body dimensions 10.6x7.2x5.2mm
• Coil power consumption 140mW
• Operating temperature -40...85°C
• Relay series FTR-B3
• Contact resistance 75mΩ
• Contact material AgNi + Au
• Terminal pitch 2.2mm
• Output configuration see

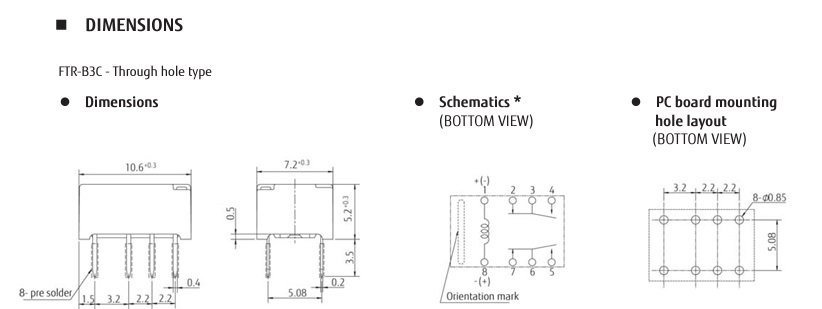

• Dimensions see
• Additional information
• Gross weight: 0.836 g
• Manufacturer part number: FTR-B3CA003Z

Parametri

FUJITSU
DC3V
DPDT
2x0.3A/125VAC
2x1A/24VDC
uz pārslēgšanu
monostabilais
2
