Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 3V DC
• AC contacts rating @R
• (at resistance load) 10A / 240V AC
• DC contacts rating @R
• (at resistance load) 15A / 24V DC
• Contact current max. 15A
• Switched voltage max. 24V DC, max. 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 25Ω
• Coil voltage min. 2.25V DC
• Coil voltage max. 3.9V DC
• Operate time 10ms

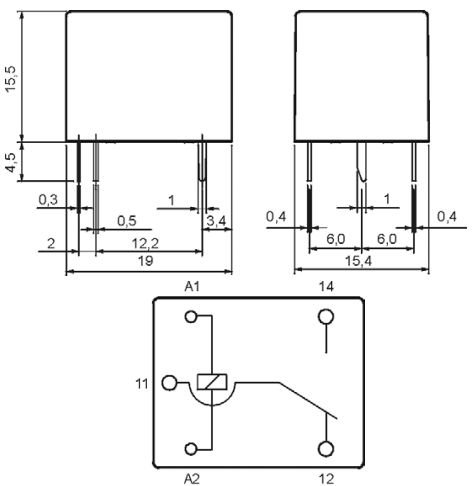

• Body dimensions 19x15.4x15.5mm
• Release time 5ms
• Coil power consumption 360mW
• IP rating IP64
• Operating temperature -30...55°C
• Relay series RM50
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 2mm

Parametri

RELPOL
DC3V
SPDT
10A/240VAC
15A/24VDC
uz pārslēgšanu
monostabilais
1
