Apraksts

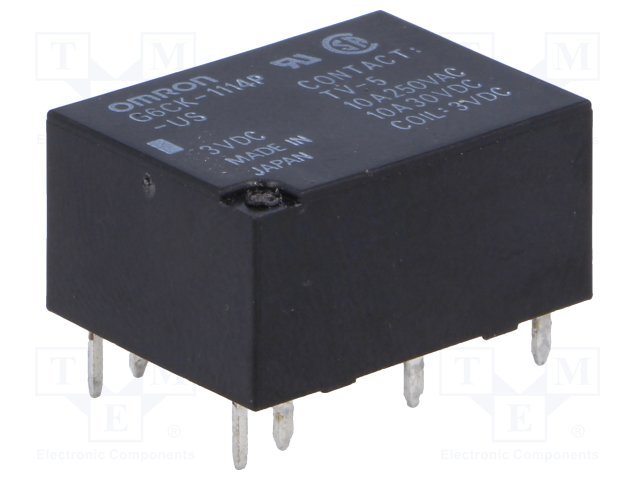

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 3V DC
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• DC contacts rating
• (at resistance load) 10 A / 30 VDC
• Contact current max. 10A
• Switched voltage max 380V AC, max 125V DC
• Relay variant bistable, miniature
• Mounting PCB, socket
• Coil resistance 32.1Ω
• Operate time 10ms

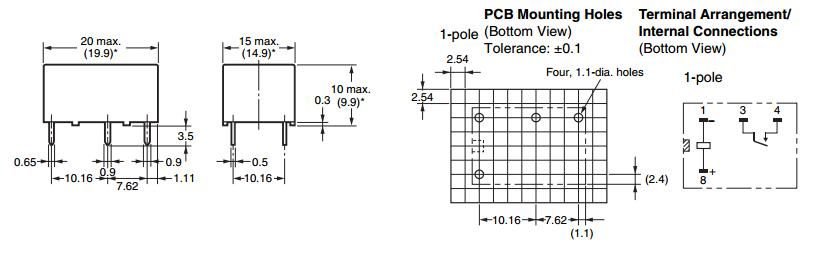

• Body dimensions 20 x 15 x 10mm
• Release time 10ms
• Operating temperature -25...70°C
• Relay series G6C
• Contact resistance 30mΩ
• Terminal pitch 7.62mm
• Coil current 93.5mA
• Relay features two coils
• Enclosure description hermetic seal

Parametri

OMRON
DC3V
SPST-NO
10A/250VAC
10A/30VDC
uz saslēgšanu
bistabilais
1
