Apraksts

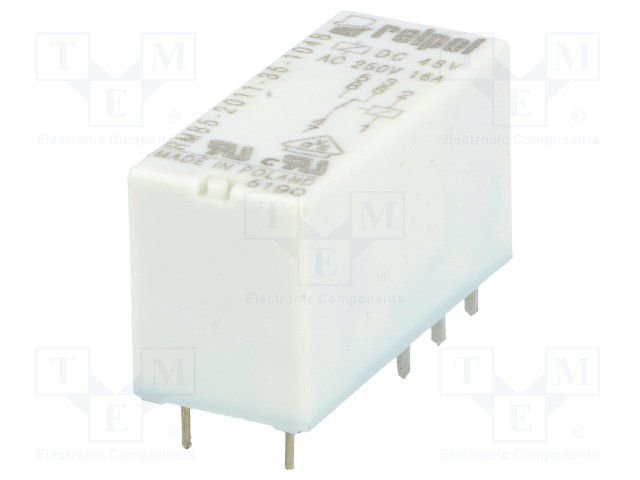

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V DC
• AC contacts rating @R
• (at resistance load) 16A / 250VAC
• DC contacts rating @R
• (at resistance load) 16A / 24VDC
• Contact current max. 16A
• Switched voltage max 440V AC, max 250V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 5700Ω
• Coil voltage min. 33.6V DC
• Coil voltage max. 122.4V DC
• Operate time 8ms

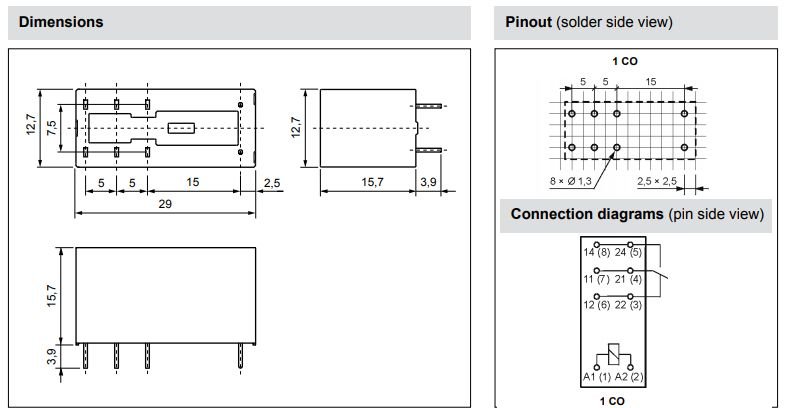

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP67
• Operating temperature -40...85°C
• Relay series RM85
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Related items GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
• Current rating 16A

Parametri

RELPOL
DC48V
DPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
2
