Apraksts

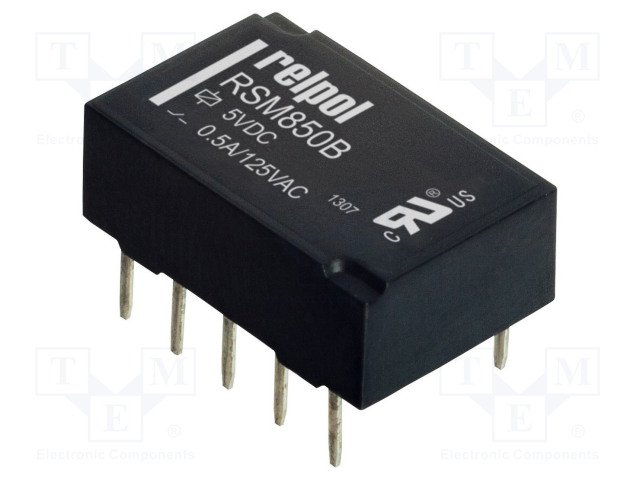

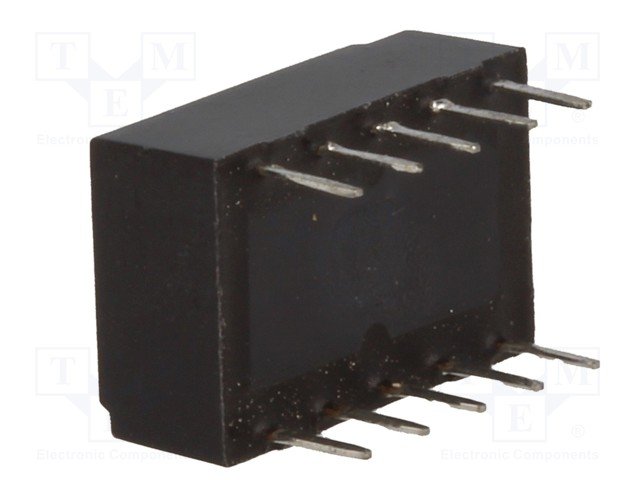

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 5V DC
• AC contacts rating @R
• (at resistive load) 0.5A / 125V AC
• DC contacts rating @R
• (at resistive load) 2A / 30V DC
• Contact current max. 2A
• Switched voltage max. 30V DC, max. 250V AC
• Relay variant bistable, subminiature
• Mounting PCB
• Coil resistance 250Ω
• Coil voltage min. 3.75V DC
• Coil voltage max. 14.5V DC
• Operate time 3ms

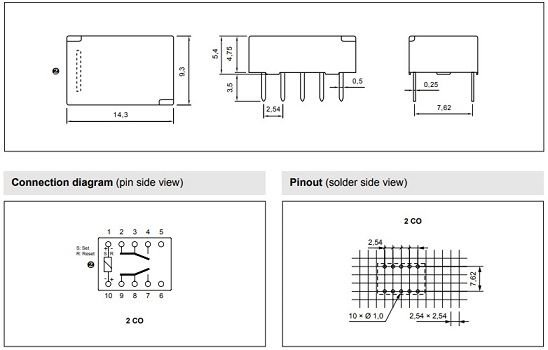

• Body dimensions 14.3x9.3x5.4mm
• Release time 3ms
• Coil power consumption 100mW
• IP rating IP64
• Mechanical durability 100000000 cycles
• Operating temperature -40...70°C
• Weight 1.5g
• Relay series RSM850B
• Contact resistance 50mΩ
• Electrical life 100000 cycles
• Contact material AgPd/Au 0,2μm
• Terminal pitch 2.54mm
• OEM number 2611711
• Relay features single coil
• Additional information
• Gross weight: 1.328 g
• Manufacturer part number: RSM850B-6112-85-1005

Parametri

RELPOL
DC5V
DPDT
2x0.5A/125VAC
2x2A/30VDC
uz pārslēgšanu
bistabilas/polarizetais
2
