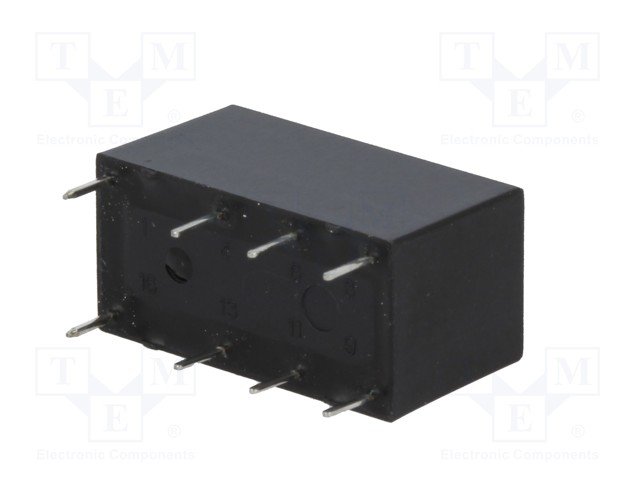

Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 5V DC
• Contact current max. 2A
• AC contacts rating @R(at resistive load) 1A / 125V AC
• DC contacts rating @R(at resistive load) 2A / 30V DC
• Switched voltage max. 120V DC, max. 240V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 125Ω
• Coil voltage min. 3.75V DC
• Coil voltage max. 10V DC
• Operate time 7ms

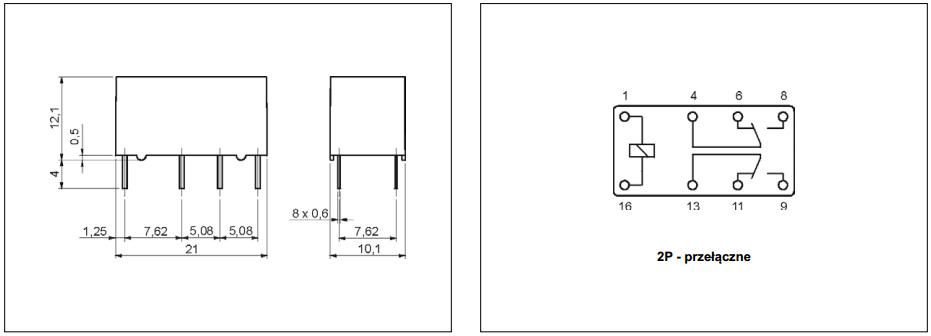

• Body dimensions 20.2x10x11.5mm
• Release time 4ms
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Contact material AgNi + Au
• Terminal pitch 5.08mm

Parametri

DC5V
DPDT
uz pārslēgšanu
monostabilais
2
HONGFA RELAY
2x1A/125VAC
2x2A/30VDC

Papildu dokumentācija
