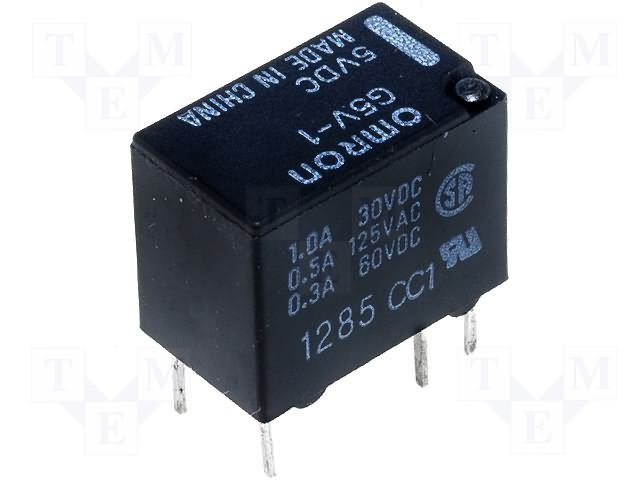

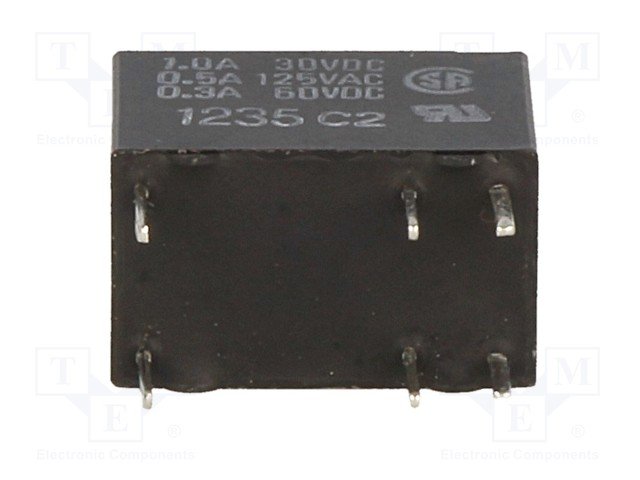

Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 5V DC
• AC contacts rating @R  0.5A / 125V AC
• DC contacts rating @R  1A / 24V DC
• Contact current max. 1A
• Switched voltage max. 60V DC,  max. 125V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 166.7Ω
• Body dimensions 12.5x7.5x10mm
• Coil power consumption 150mW
• Operating temperature -30...70°C
• Relay series G5V-1
• Contact resistance 100mΩ
• Terminal pitch 2.54mm
• Coil current 30mA

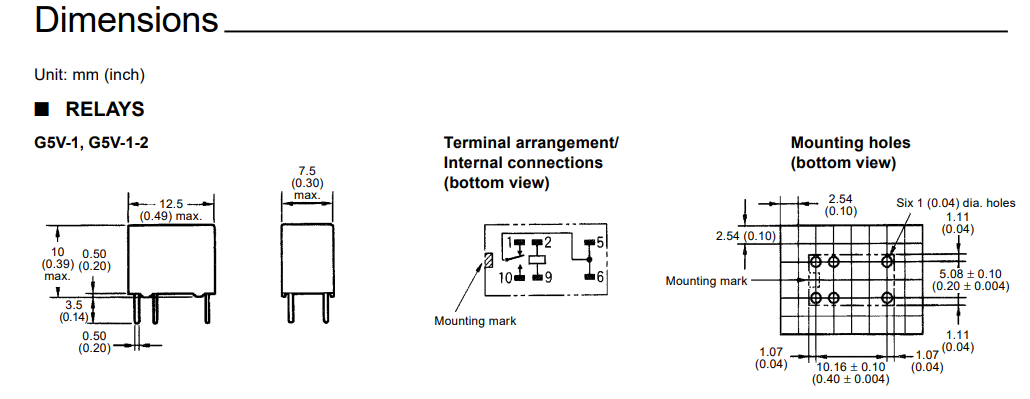

• Dimensions see
• Output configuration see
• Additional information
• Gross weight: 2.233 g
• Manufacturer part number: G5V-1 5VDC

Parametri

OMRON
DC5V
SPDT
0.5A/125VAC
1A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
