Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 5V DC
• AC contacts rating @R  8A / 250V AC
• DC contacts rating @R  8A / 30V DC
• Contact current max. 8A
• Switched voltage max. 300V DC,  max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 113Ω
• Operate time 9ms

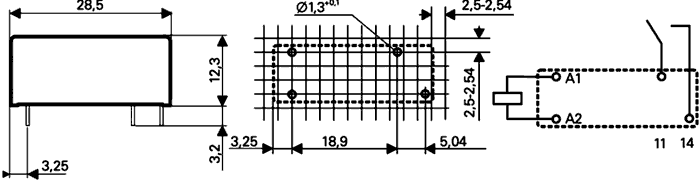

• Body dimensions 28.5x10.1x12.3mm
• Release time 5ms
• Coil power consumption 220mW
• IP rating IP40
• Mechanical durability 30000000 cycles
• Operating temperature -40...85°C
• Weight 8g
• Relay series RYII
• Switching capacity 2000VA
• Contact material AgNi
• Terminal pitch 5mm
• Coil current 44mA
• Additional information
• Gross weight: 7.537 g
• Manufacturer part number: 7-1393224-6

Parametri

TE Connectivity
DC5V
SPST-NO
8A/250VAC
8A/30VDC
uz saslēgšanu
monostabilais
1
