Apraksts

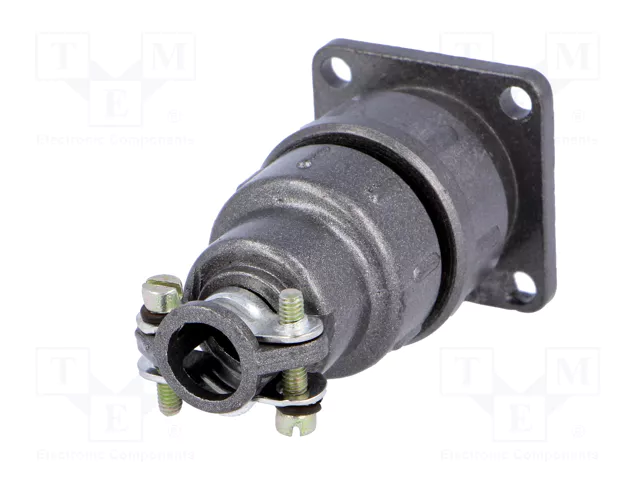

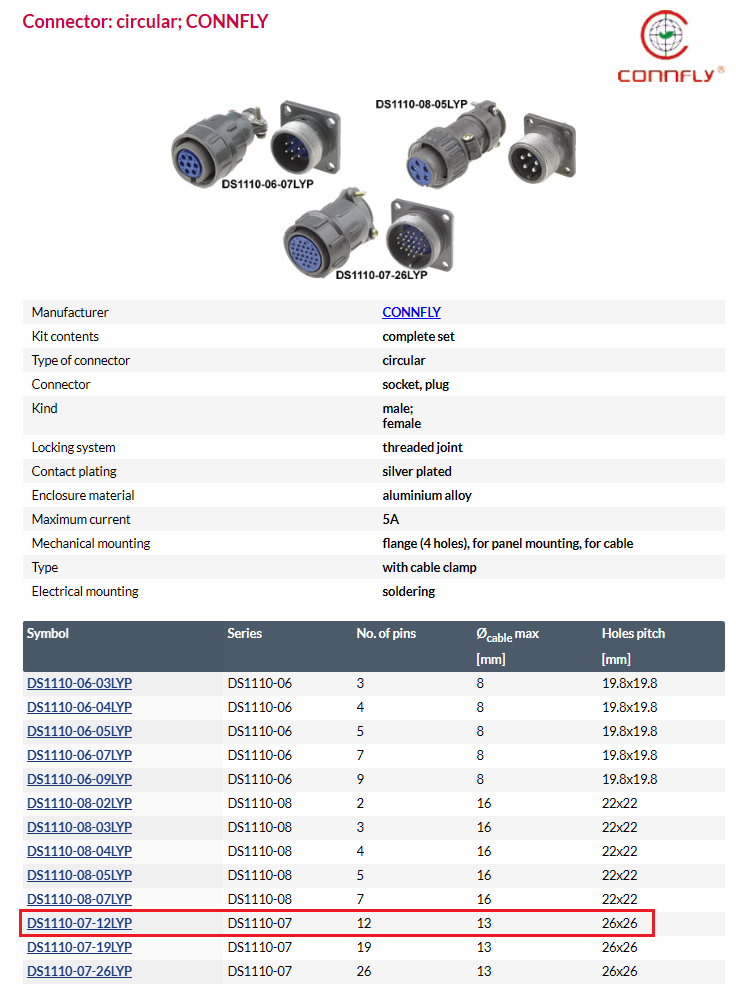

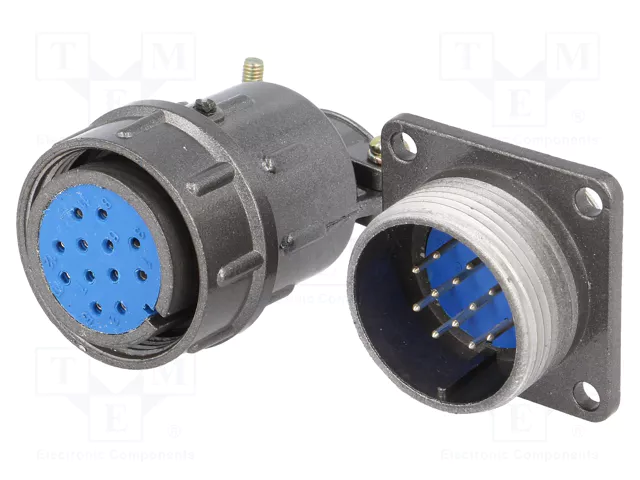

• Manufacturer CONNFLY
• Type of connector circular
• Connector plug, socket
• Connector series DS1110-07
• Number of pins 12
• Connector variant with cable clamp
• Locking system threaded joint
• Contact plating silver plated
• Enclosure material aluminium alloy
• Mechanical mounting flange (4 holes), for cable, for panel mounting
• Electrical mounting soldering
• Kit contents complete set
• Maximum current 5A
• Mounting holes pitch 26x26mm
• Max. cable diameter 13mm
• Kind of connector
• female
• male
• Gross weight52.32 g

Parametri

12pin
Ligzda+Spraudnis
Savienotājs
Uz vadu/Panelim
