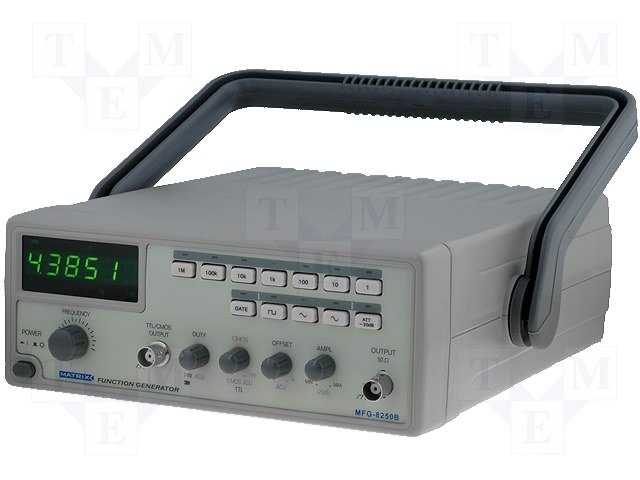

• Specification
• Generator type function
• Frequency measuring range 0,5...5MHz
• Display LED 6 digit
• Input impedance 1MΩ;
• Impedance 50Ω;
• Frequency meter 0.5...5MHz
• Impedance tolerance ±10%
• Amplitude Ͱ5;10Vpp (on 50Ω; load)
• Attenuation -20 dB ± 1 dB x 2
• Duty cycle coefficient adjustment 80%:20%:80% at 1MHz
• Distortion of sinusoidal waveform Ͱ4; 1%, 0,3Hz-200KHz
• Flatness of sinusoidal waveform Ͱ4;0,3dB, <500KHz, Ͱ4;1dB, <5MHz
• Sawtooth waveform linearity Ͱ5; 95%, 100KHz-5MHz, Ͱ5;98%, 0,5Hz-100KHz
• Rectangular waveform symmetry ± 2 %, 1Hz-100KHz
• Rectangular impulse rise time Ͱ4;50ns
• CMOS output 4VppͰ5;±1Vpp - 14,5Vpp ± 0,5Vpp
• TTL output Ͱ5; 3Vpp
• Voltage controlled frequency 0-10V ± 1V (100:1), 10kΩ; impedance
• Time base triggering 0.5...30s
• Power supply 115/230 VAC ±15%, 50/60Hz
• Weight 2.2kg
• Dimensions 91 x 251 x 291mm
• Features:
• 50Ω; signal main output with adjustable reference level and 20 dB gain function
• other output for TTL and CMOS signals
• adjustable duty cycle with inversion
• frequency meter
• low distortion waveforms (sine, sawtooth and rectangular)
• built-in frequency meter
• 4 Watt power output, <100kHz
• frequency external voltage control
• Standard equipment:
• test leads with BNC connector
• mains cable
• Additional information
• Gross weight:3 kg
