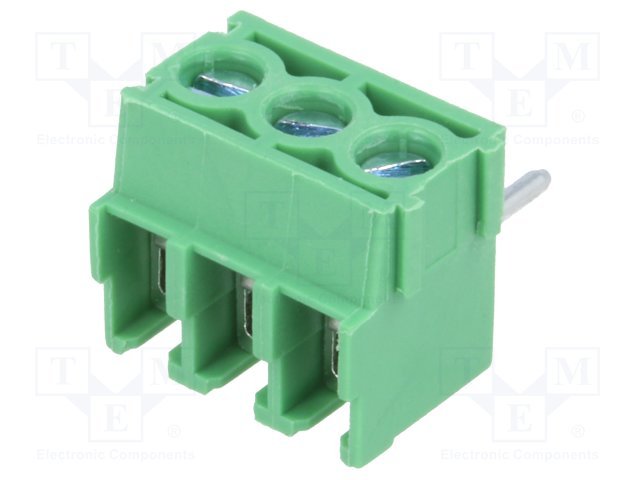

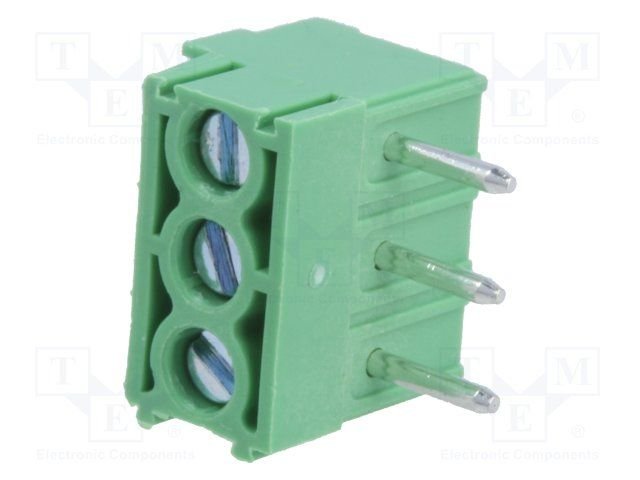

Apraksts

• Manufacturer DEGSON ELECTRONICS
• Connector type PCB terminal block
• Spatial orientation angled 90°
• Contacts pitch 3.5mm
• Number of ways 3
• Mechanical mounting on PCBs
• Electrical mounting THT, screw terminal
• Wire cross section 1.5mm2
• Wire size 26...16AWG
• Connector push terminal
• Contact plating tinned
• Rated current 17.5A
• Height 7.6mm
• Colour green
• Rated voltage 200V
• Body material PA66
• Connectors features assembling possibility
• Length 10.5mm
• Contact material brass
• Operating temperature -40...105°C
• Depth 9.2mm
• Flammability rating UL94V-0
• Type of pin configuration 1x3
• Conform to the norm UL

Parametri

3
3.5mm
Aizspiednis kontakts PCB
Leņķisks 90°
Terminal blocks PCB
