Apraksts

• Manufacturer ADAM TECH

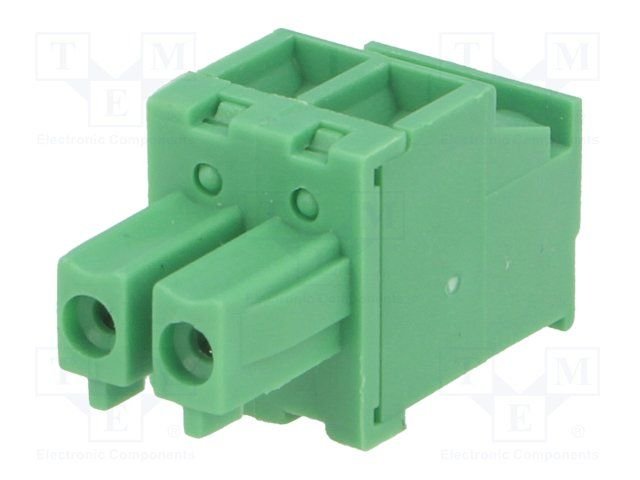

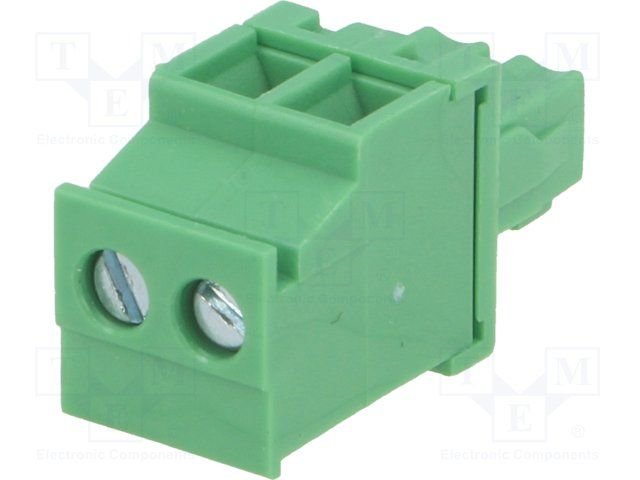

• Connector type pluggable terminal block
• Contacts pitch 3.5mm
• Number of ways 2
• Spatial orientation angled
• Connector plug
• Connector type female
• Mechanical mounting for cable
• Electrical mounting screw terminal
• Wire cross section 1mm2
• Wire size 28...16AWG
• Type of pin configuration 1x2
• Colour green
• Locking system latch
• Rated voltage 300V
• Rated current 8A
• Body material PA66
• Flammability rating UL94V-0
• Conform to the norm UL
• Contact plating nickel plated
• Operating temperature -40...105°C
• Contact material phosphor bronze
• Number of terminals 2

Parametri

2
Ligzda
3.5mm
Leņķisks 90°
Terminal blocks vadam
