Apraksts

• Specification
• Switch type microswitch
• Stable positions number 1-position
• Contacts configuration SPST-NO
• DC contacts rating
• (at resistance load) 0.05 A / 24 VDC
• Mounting SMT
• Switching torque 1.47N

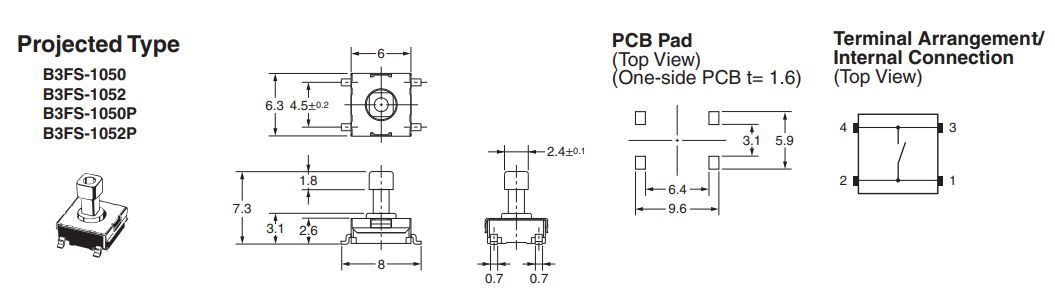

• Body dimensions 6 x 6mm
• Button height
• (measured from PCB) 7.3mm
• Switching method OFF-(ON)
• Button shape square
• Terminal pitch 5.9x9.6mm
• Operating temperature -25...70°C
• Actuator colour yellow
• Leads for PCB
• Max. contact resistance: 100mΩ;
• Min. insulation resistance 100MΩ;
• Mechanical durability 300000cycles
• Key stroke 0.25mm

Parametri

SMD
SPST-NO
0.05A/24VDC
6.2x6.2x3mm
1.47N
7.3mm
Horizontāli

Papildu dokumentācija
