Apraksts

• Type of switch ROCKER
• Contacts configuration  DPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  15A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 6,3x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 31x22.3mm
• Button marking I-O
• Related items RSC09
• Button shape rectangular
• Height above panel 9.4mm
• Stable positions number 2

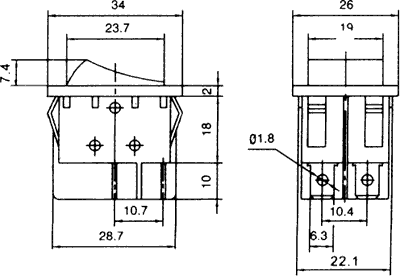

• Dimensions see
• Panel cutout see
• Button marking see
• Additional information
• Gross weight: 15.05 g
• Manufacturer part number: RS2013C3BK

Parametri

DPST
15A/230VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
2
Bez apgaismojuma
